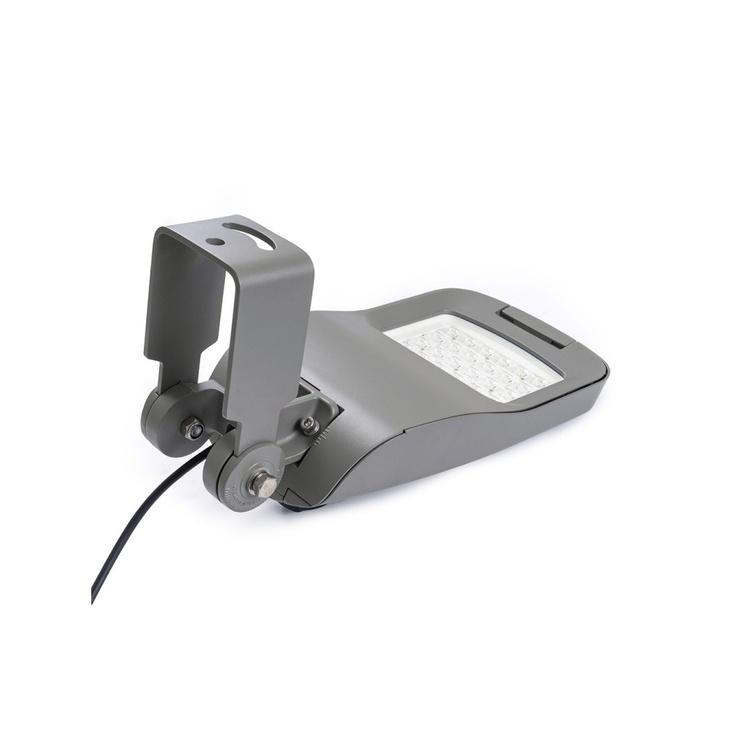

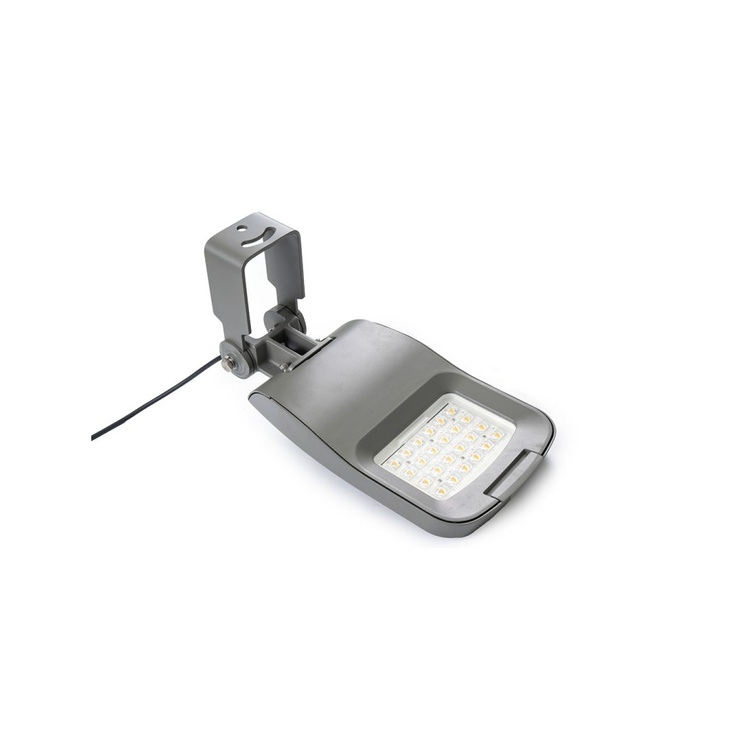

Vega F post Series 1FP
| Body | Die-Cast Aluminum |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Electric | Quick on/off connector |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09/IK10 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC 62471 |
| Voltage,V200-240 | Frequency,Hz 50-60 | |||||
| LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) | |
| VEGA1F post | 8 | 8-20 | ＞0.95 | 0.1 | 2 | 6 |
| 16 | 20-30 | 4 | ||||
| 24 | 40-60 | 4 | ||||
| VEGA2F post | 16 | 30-40 | ＞0.95 | 0.15 | 4 | 7 |
| 32 | 40-70 | 6 | ||||
| 48 | 70-120 | 8 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | ||||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | VEGA 1F post | 660X260X115 | 1 | 1400 | 6 | 8400 | 5.0 | 7000 | 0.02 | 28 |
| VEGA 2F post | 770X290X115 | 1 | 1077 | 7 | 7538 | 6 | 6462 | 0.026 | 28 | |
| 40GP Container 11.8*2.13*2.18 | VEGA 1F post | 660X260X115 | 1 | 2900 | 6 | 17400 | 5.0 | 14500 | 0.02 | 58 |
| VEGA 2F post | 770X290X115 | 1 | 2231 | 7 | 15615 | 6 | 13385 | 0.026 | 58 | |
| 40HQ Container 11.8*2.13*2.72 | VEGA 1F post | 660X260X115 | 1 | 3400 | 6 | 20400 | 5.0 | 17000 | 0.02 | 68 |
| VEGA 2F post | 770X290X115 | 1 | 2615 | 7 | 18308 | 6 | 15692 | 0.026 | 68 | |
| POLE HEIGHT | 4 | 6-8 | 8-12 | 10-16 |
| VEGA1F post | 8-30W | 40-60W | ||
| VEGA2F post | 30-50W | 70W | 120W |
