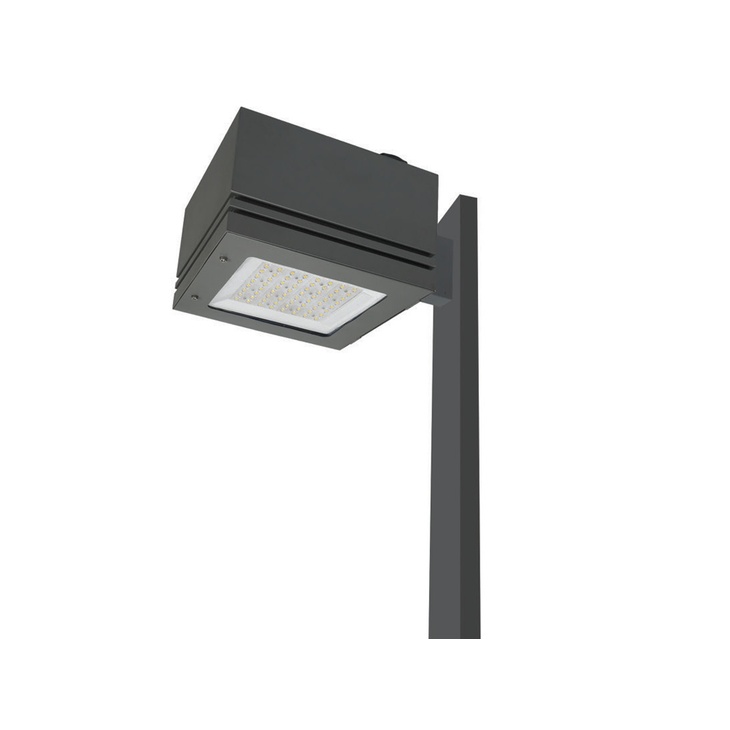

Featuring a compact, rectangular shape, BOXLED ensures stable installation and seamless integration into architectural settings. Its unobtrusive, box-shaped design prioritizes both functionality and visual simplicity.
Featuring a compact, rectangular shape, BOXLED ensures stable installation and seamless integration into architectural settings. Its unobtrusive, box-shaped design prioritizes both functionality and visual simplicity.
This luminaire is suitable for functional public areas such as parking lots, pathways, and transit hubs. It also performs reliably in semi-outdoor or indoor utility spaces like warehouses and sheltered terminals.
With a high power factor (≥0.95) and multiple beam angle options, it delivers energy-efficient, uniform illumination. Built to IP66 standards, it guarantees long-term durability and glare control in demanding environments.
| Body | Stainless Steel 201 and glass |
| Optical System | Type I-V or Customized special |
| Input | Voltage: 200v-240VAC |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09/IK10 |
| Surge Protection | 10kV,25kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC-62471 |
| Model name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |
| BoxLED-152 | 16 | 20-50 | ≥0.95 | 0.21 | 4 | 15 |
| 32 | 50-90 | 6 | 15 | |||
| 48 | 40-100 | 8 | 15 | |||
| 64 | 80-150 | 10 | 15 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | BOXLED | 420X280X770 | 1 | 308 | 14.4 | 4431 | 15.8 | 4862 | 0.091 | 28 |
| 0.11 | 28 | |||||||||
| 0.071 | 28 | |||||||||
| 40GP Container 11.8*2.13*2.18 | BOXLED | 420X280X770 | 1 | 637 | 14.4 | 9178 | 15.8 | 10070 | 0.091 | 58 |
| 0.11 | 58 | |||||||||
| 0.071 | 58 | |||||||||
| 40HQ Container 11.8*2.13*2.72 | BOXLED | 420X280X770 | 1 | 747 | 14.4 | 10760 | 15.8 | 11807 | 0.091 | 68 |
| 0.11 | 68 | |||||||||
| 0.071 | 68 | |||||||||
| POLE HEIGHT | 4 | 6 | 8 | 10 |
| BoxLED | 20-50 | 50-90 | 40-100 | 80-150 |
Featuring a compact, rectangular shape, BOXLED ensures stable installation and seamless integration into architectural settings. Its unobtrusive, box-shaped design prioritizes both functionality and visual simplicity.
This luminaire is suitable for functional public areas such as parking lots, pathways, and transit hubs. It also performs reliably in semi-outdoor or indoor utility spaces like warehouses and sheltered terminals.
With a high power factor (≥0.95) and multiple beam angle options, it delivers energy-efficient, uniform illumination. Built to IP66 standards, it guarantees long-term durability and glare control in demanding environments.
