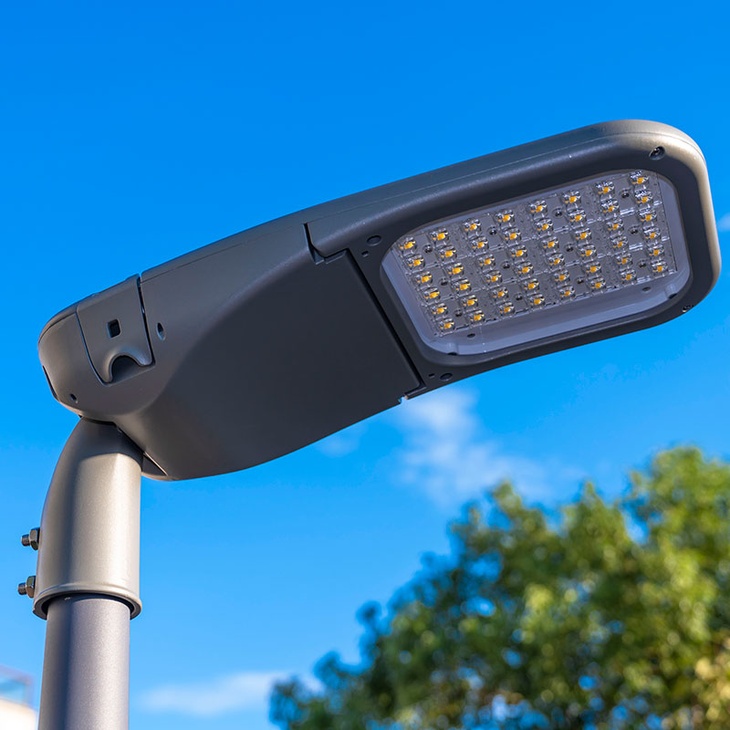

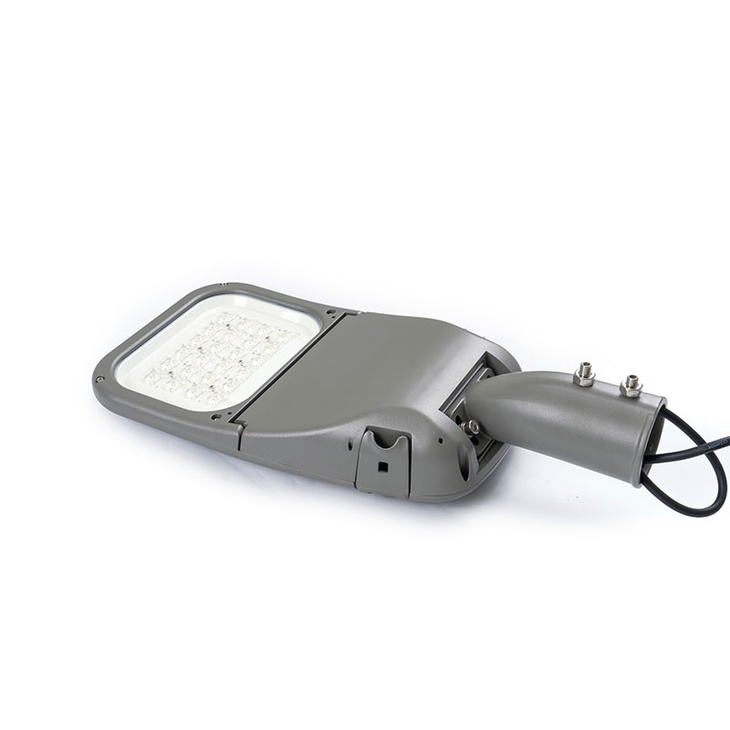

Crafted with a die-cast aluminum body and modular lens system, it ensures robust construction and precise optical control. High IP66 and IK09 ratings, along with tempered glass, provide superior durability and weather resistance.
Crafted with a die-cast aluminum body and modular lens system, it ensures robust construction and precise optical control. High IP66 and IK09 ratings, along with tempered glass, provide superior durability and weather resistance.
Ideal for a wide range of roads including highways, urban streets, and residential areas. Also well-suited for car parks, cycling paths, and pedestrian zones.
Multiple optical distributions (Type I-V) enable tailored illumination with reduced glare and enhanced uniformity. Optional smart controls and high surge protection further improve energy efficiency and long-term reliability.
| Body: | Die-Cast Aluminum |
| Optical system: | Anodized Alum i num reflector and PC/PMMA diffuser |
| Electric: | Quick on/off connector when open |
| Finishing: | Surface anti-aging electrostatic spray processing |
| Color temperature: | 2200K to 6500K |
| Ambient environment: | -40°℃ to+55℃ |
| Control inputs: | DALI,O-10V,Astro Dim, Step Dim |
| Insulation Class: | Class I/Il |
| IP rating: | IP66 |
| IK rating: | IK09 |
| Surge Protection: | 10KV,10KA |
| Options: | Photocell, NEMA socket,ZHAGA |
| Certification: | CE, CB,ENEC,EMC,TM21,LM79,IEC-62471 |
Crafted with a die-cast aluminum body and modular lens system, it ensures robust construction and precise optical control. High IP66 and IK09 ratings, along with tempered glass, provide superior durability and weather resistance.
Ideal for a wide range of roads including highways, urban streets, and residential areas. Also well-suited for car parks, cycling paths, and pedestrian zones.
Multiple optical distributions (Type I-V) enable tailored illumination with reduced glare and enhanced uniformity. Optional smart controls and high surge protection further improve energy efficiency and long-term reliability.
Crafted with a die-cast aluminum body and modular lens system, it ensures robust construction and precise optical control. High IP66 and IK09 ratings, along with tempered glass, provide superior durability and weather resistance.
