The MANTIS series lighting fixtures feature a robust structural design with an IP66 protection rating, ensuring excellent durability and resistance to harsh outdoor conditions. Flexible installation options and multiple light distribution modes provide uniform and adaptable illumination performance.
The MANTIS series lighting fixtures feature a robust structural design with an IP66 protection rating, ensuring excellent durability and resistance to harsh outdoor conditions. Flexible installation options and multiple light distribution modes provide uniform and adaptable illumination performance.
These fixtures are ideal for coastal resorts, seaside promenades, and public roadways, enhancing both safety and visual comfort. They are also suitable for urban streets, parks, and commercial districts, delivering reliable and efficient lighting performance across various environments.
The series offers outstanding waterproof, dustproof, and weather-resistant performance, ensuring long service life even in demanding conditions. Combined with its flexible mounting options and aesthetically refined appearance, it serves as a high-performance lighting solution for both functional and decorative outdoor applications.
MANTIS series LED garden lights enhance the beauty and the brightness of illumination of any outdoor area. These consist of MANTIS-D, MANTIS-HP, MANTIS-L, MANTIS-S, and MANTIS-HS. Each one of these lights tends to specific garden and landscaping requirements. These lights combine modern aesthetics with remarkable efficiency. They provide consistent illumination while being highly energy efficient. Easy to install and long-lasting. With durable housings and excellent waterproof ratings, MANTIS garden lights can endure all kinds of weather.
An urban luminaire family with post-top, suspended and side-entry mounting options. See the series variants.
Applications: Walkways, Parks, Boulevards, Urban streets.
| Body | Die-Cast Aluminum and glass |
| Optical System | Type I-V or Customized special |
| Input | Voltage: 200v-240VAC,frequency: 50/60Hz |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Surge Protection | 10kV, 25kV,10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC-62471 |
| Model name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |

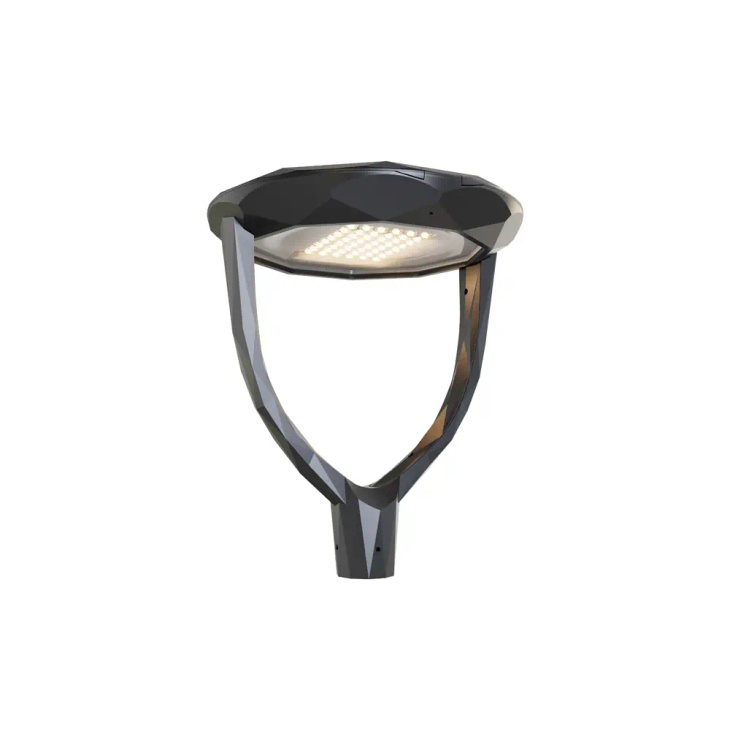

| Mantis-D | 16 | 20-50 | ≥0.95 | 0.23 | 6 | 14.5 |
| 32 | 35-75 | |||||
| 48 | 50-100 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | Mantis-D | 530X530X630 | 1 | 133 | 12 | 1600 | 14.5 | 1933 | 0.21 | 28 |
| 0.16 | 28 | |||||||||
| 0 | 0 | 0.071 | 28 | |||||||
| 40GP Container 11.8*2.13*2.18 | Mantis-D | 530X530X630 | 1 | 276 | 12 | 3314 | 14.5 | 4005 | 0.21 | 58 |
| 0.16 | 58 | |||||||||
| 0 | 0 | 0.071 | 58 | |||||||
| 40HQ Container 11.8*2.13*2.72 | Mantis-D | 530X530X630 | 1 | 324 | 12 | 3886 | 14.5 | 4695 | 0.21 | 68 |
| 0.16 | 68 | |||||||||
| 0 | 0 | 0.071 | 68 | |||||||
| POLE HEIGHT | 4 | 6 |
| Mantis-D | 20-50 | 50-100 |
| Model Name | LEDs | Power (W) | PF | Max. wind load area | Pack size (mm) | Weight (kgs) | Pcs/40HQ | Pcs/20ft |
|---|---|---|---|---|---|---|---|---|
| MANTIS-HS | 16 | 20–50 | ≥0.95 | 0.22 | 540×540×260 | 12.00 | 880 | 350 |
| 32 | 40–75 | ≥0.95 | 0.22 | 540×540×260 | 12.00 | 880 | 350 | |
| 48 | 50–100 | ≥0.95 | 0.22 | 540×540×260 | 12.00 | 880 | 350 |
| Model Name | LEDs | Power (W) | PF | Max. wind load area (m²) | Pack size (mm) | Weight (kgs) | Pcs/40HQ | Pcs/20ft |
|---|---|---|---|---|---|---|---|---|
| MANTIS-L | 16 | 20–50 | ≥0.95 | 0.25 | 725×520×100 | 12.0 | 1780 | 730 |
| 32 | 35–75 | ≥0.95 | 0.25 | 725×520×100 | 12.0 | 1780 | 730 | |
| 48 | 50–100 | ≥0.95 | 0.25 | 725×520×100 | 12.0 | 1780 | 730 |
| Model Name | LEDs | Power (W) | PF | Max. wind load area (m²) | Pack size (mm) | Weight (kgs) | Pcs/40HQ | Pcs/20ft |
|---|---|---|---|---|---|---|---|---|
| MANTIS-HP | 16 | 20–50 | ≥0.95 | 0.25 | 520×520×225 | 12.0 | 1100 | 450 |
| 32 | 35–75 | ≥0.95 | 0.25 | 520×520×225 | 12.0 | 1100 | 450 | |
| 48 | 50–100 | ≥0.95 | 0.25 | 520×520×225 | 12.0 | 1100 | 450 |
| Model Name | LEDs | Power (W) | PF | Max. wind load area (m²) | Pack size (mm) | Weight (kgs) | Pcs/40HQ | Pcs/20ft |
|---|---|---|---|---|---|---|---|---|
| MANTIS-D | 16 | 20–50 | ≥0.95 | 0.23 | 540×540×650 | 13.80 | 350 | 140 |
| 32 | 35–75 | ≥0.95 | 0.23 | 540×540×650 | 13.80 | 350 | 140 | |
| 48 | 50–100 | ≥0.95 | 0.23 | 540×540×650 | 13.80 | 350 | 140 |
| Model Name | LEDs | Power (W) | PF | Max. wind load area | Pack size (mm) | Weight (kgs) | Pcs/40HQ | Pcs/20ft |
|---|---|---|---|---|---|---|---|---|
| MANTIS-S | 16 | 20–50 | ≥0.95 | 0.23 | 540×540×650 | 10.00 | 350 | 140 |
| 32 | 35–75 | ≥0.95 | 0.23 | 540×540×650 | 10.00 | 350 | 140 | |
| 48 | 50–100 | ≥0.95 | 0.23 | 540×540×650 | 10.00 | 350 | 140 |
| Model | Power (W) | LED Quantity (pcs) 3535/5050 |
|---|---|---|
| MANTIS-HS | 20–100 | 16 / 32 / 48 |
| MANTIS-L | 20–100 | 16 / 32 / 48 |
| MANTIS-HP | 20–100 | 16 / 32 / 48 |
| MANTIS-D | 20–100 | 16 / 32 / 48 |
| MANTIS-S | 20–100 | 16 / 32 / 48 |
The MANTIS series lighting fixtures feature a robust structural design with an IP66 protection rating, ensuring excellent durability and resistance to harsh outdoor conditions. Flexible installation options and multiple light distribution modes provide uniform and adaptable illumination performance.
These fixtures are ideal for coastal resorts, seaside promenades, and public roadways, enhancing both safety and visual comfort. They are also suitable for urban streets, parks, and commercial districts, delivering reliable and efficient lighting performance across various environments.
The series offers outstanding waterproof, dustproof, and weather-resistant performance, ensuring long service life even in demanding conditions. Combined with its flexible mounting options and aesthetically refined appearance, it serves as a high-performance lighting solution for both functional and decorative outdoor applications.
MANTIS series LED garden lights enhance the beauty and the brightness of illumination of any outdoor area. These consist of MANTIS-D, MANTIS-HP, MANTIS-L, MANTIS-S, and MANTIS-HS. Each one of these lights tends to specific garden and landscaping requirements. These lights combine modern aesthetics with remarkable efficiency. They provide consistent illumination while being highly energy efficient. Easy to install and long-lasting. With durable housings and excellent waterproof ratings, MANTIS garden lights can endure all kinds of weather.
An urban luminaire family with post-top, suspended and side-entry mounting options. See the series variants.
Applications: Walkways, Parks, Boulevards, Urban streets.
Post-top / suspended / side-entry; Type II, Type III, Type IV, Type V optical distributions. Confirm the mounting, LED configuration and exact photometric file for the selected model.
