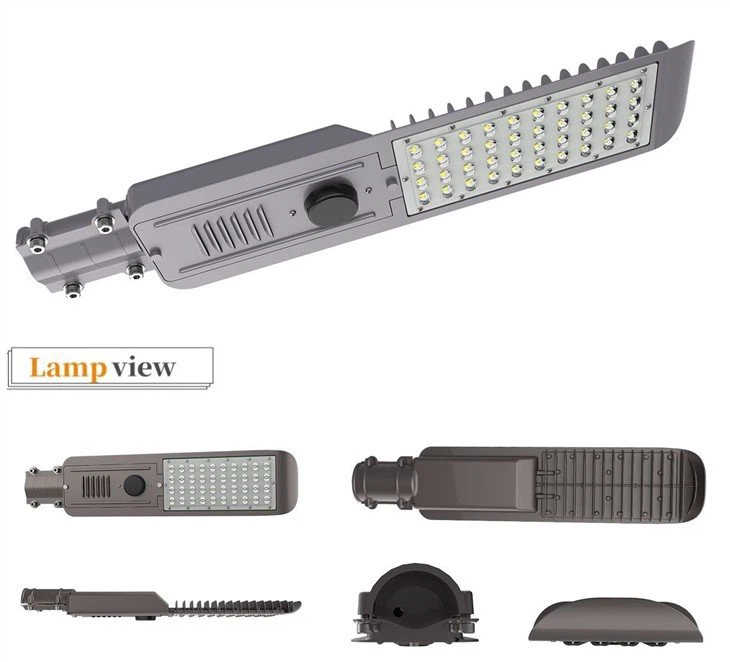

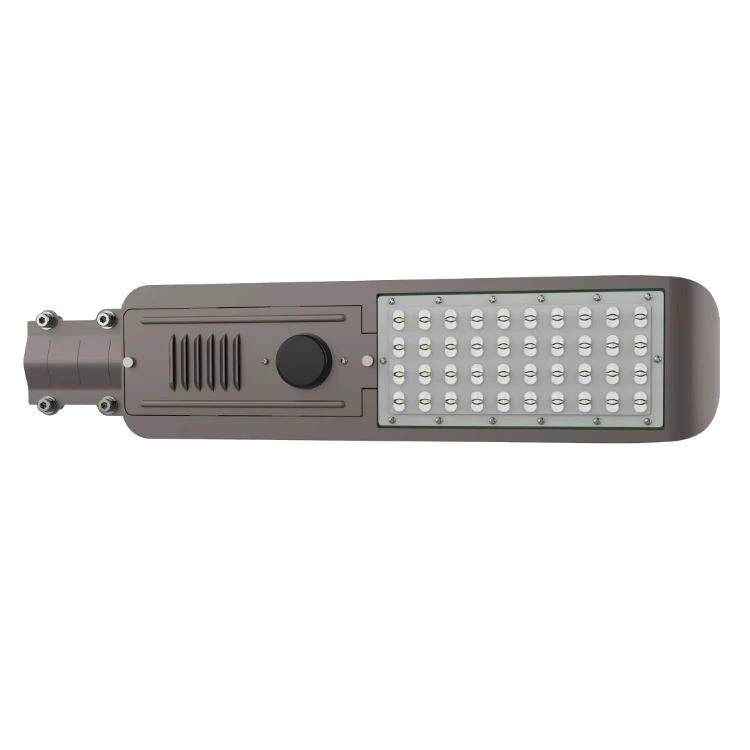

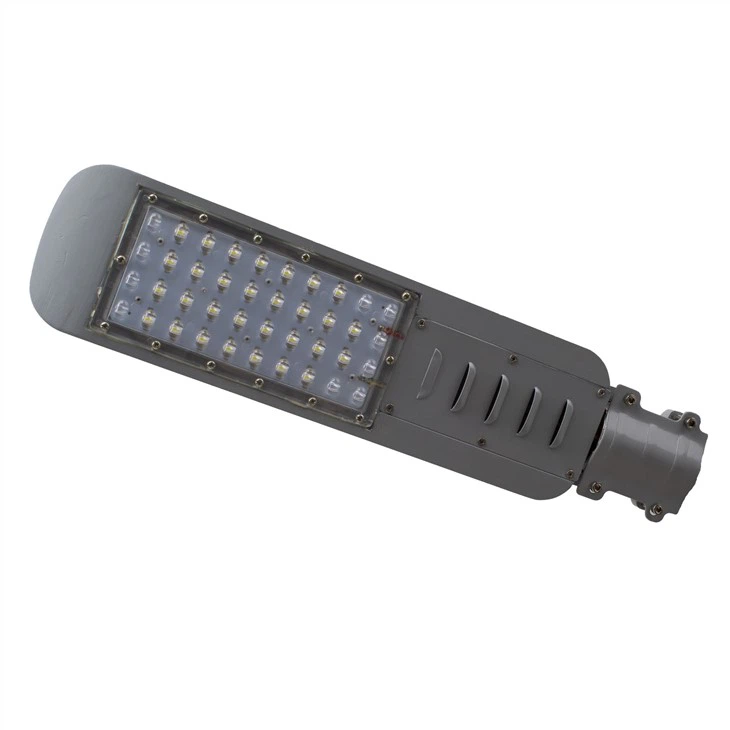

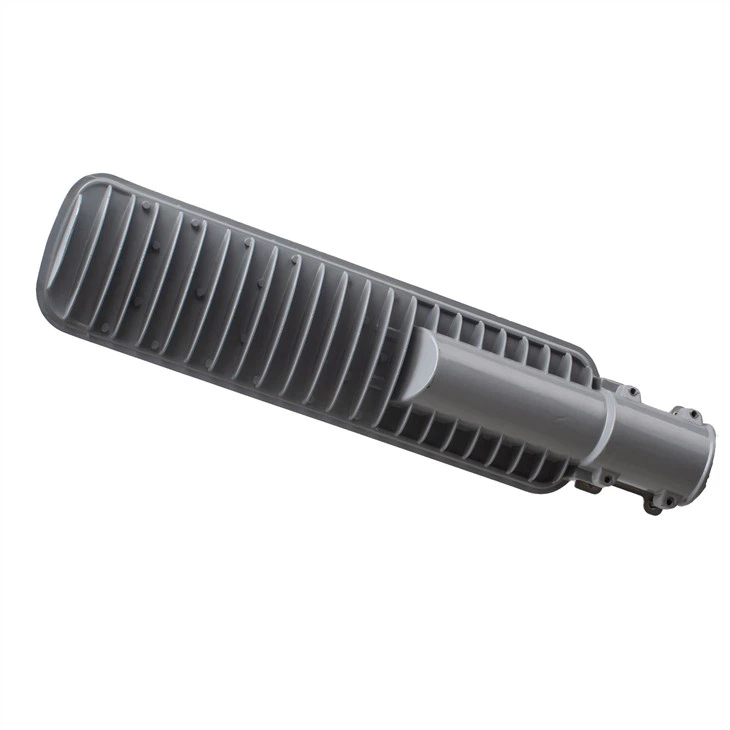

Namkoo High-Lumen Street Lights



---

Product Overview

Namkoo high-lumen street lights are intended for roadways, parking areas and public routes. Match light output and optics to the site rather than selecting by wattage alone; outdoor suitability depends on the specified model and installation.

---

Lighting Options

Plan the Required Light Levels

Start with road width, pole height and spacing. Namkoo can review the requested lighting arrangement and identify suitable output, colour temperature and distribution options for your enquiry.

Output and Efficacy

The reference states efficacy up to 180 lm/W. Confirm the tested value and total lumens for the selected model, wattage and colour temperature. Uniform coverage also depends on the optic and pole layout.

Power Consumption

Compare input power at equivalent maintained light levels. Dimming schedules and control options can reduce consumption when appropriate; actual savings depend on the previous system and operating hours.

Service-Life Planning

The reference lists more than 50,000 hours. Ask for the rating conditions and lumen-maintenance basis, and confirm driver life and warranty separately. Plan access for routine inspection and replacement.

Application Choices

Consider these luminaires for streets, access roads and parking areas. Highway and expressway projects require a lighting design that addresses the applicable illumination, glare and uniformity criteria.

Installation Checks

Confirm bracket dimensions, pole compatibility and electrical requirements before delivery. Use qualified installers to secure the luminaire, complete protective connections and set the aiming angle.

Request a Configuration

Send Namkoo the site layout, desired light levels, supply voltage and quantity. Request the model datasheet, photometric file and written supply terms to compare the proposed configuration.

Specification	Reference Value
Listed Temperature	-10℃~70℃
Colour Rendering	≥Ra70
Housing Dimensions	618 × 135 × 56mm
Luminaire Weight	2.3kgs
Ingress Rating	IP65
CCT Range	3000K-6500K
Listed Efficacy	120 lm/W
Rated LED Life	＞50000H
Mounting Height	6~8M
DC Supply	DC 12V
Panel Options	20W / 30W / 40W
Lighting Controls	Microwave Sensor, Timer, Photocell
Battery Protection	Overcharge and Deep-Discharge Control



Configuration Notes

• Radar sensing and automatic dusk operation.
• Table: 120 lm/W; confirm any 180 lm/W variant.
• Polycrystalline panel options depend on system sizing.
• Die-cast aluminium housing with a treated exterior; confirm the finish for the site.
• Confirm available finishes.
• Set controls during commissioning.
• 5–7-day backup: confirm sizing.
• Inspect outdoor seals and coatings regularly.
• LED optics distribute light; verify the photometric file for the model.

Assembly Details

1. Microwave Control

The sensor can adjust output with detected movement. Confirm its detection range, timer and dimming settings at the site.

LED Module

The LED lens shapes the light distribution. Check road coverage and secure the mounting connection to the approved drawing.

Panel Assembly

The component reference lists 30–80 W panels and 0–95° bracket adjustment, while the table lists 20–40 W. Confirm the selected panel and bracket together.

Battery and Controller

The reference arrangement places storage and controls below the panel. Confirm battery charging limits, ventilation and service access for the selected assembly.

Mounting Arm

Specify the required arm length and structural load.

Confirm pole or wall mounting hardware before installation.

System Features

• Motion Sensing: Adjusts output when movement is detected; confirm sensor settings.
• LED Performance: Confirm the LED component and tested efficacy for the ordered model.
• Solar Collection: Select panel capacity for the nightly energy demand.
• Housing: Die-cast aluminium supports the outdoor luminaire assembly.
• Backup Planning: Verify the stated 5–7 days against load and sunlight.
• Outdoor Protection: Check ingress protection and coating for the intended site.

Assembly Options

• Microwave Control: Set detection, dimming and time control during commissioning.
• Light Distribution: Select optics using the project lighting calculation.
• Panel Adjustment: The reference bracket offers 0–95° adjustment; confirm its fit.
• Storage and Controls: Check the under-panel arrangement, ventilation and battery service access.
• Mounting Arm: Specify length and approved pole or wall fixing hardware.

Reference Code: Namkoo-HM-IB-03

Ask Namkoo to confirm the selected configuration against this reference. Include road dimensions, installation height and destination so the quotation covers the required lamp, solar assembly and documentation.

---

Supply Questions

• Q1: Can I request a sample?

  • Ask about availability and sample terms for the configuration you want to evaluate.

• Q2: When will it be ready?

  • Confirm production and dispatch dates with the order.

• Q3: Which warranty applies?

  • Request written component coverage and service terms with the quote.

• Q4: How is system voltage selected?

  • Match the controller, battery and LED input ratings. Confirm the complete system before ordering.

• Q5: How is freight arranged?

  • Request courier, air or sea options for your quantity and destination, including battery transport conditions.

• Q6: How do I report a fault?

  • Provide the order number, model, symptoms and photos for review under the agreed service terms.

Request a High-Lumen Quote
