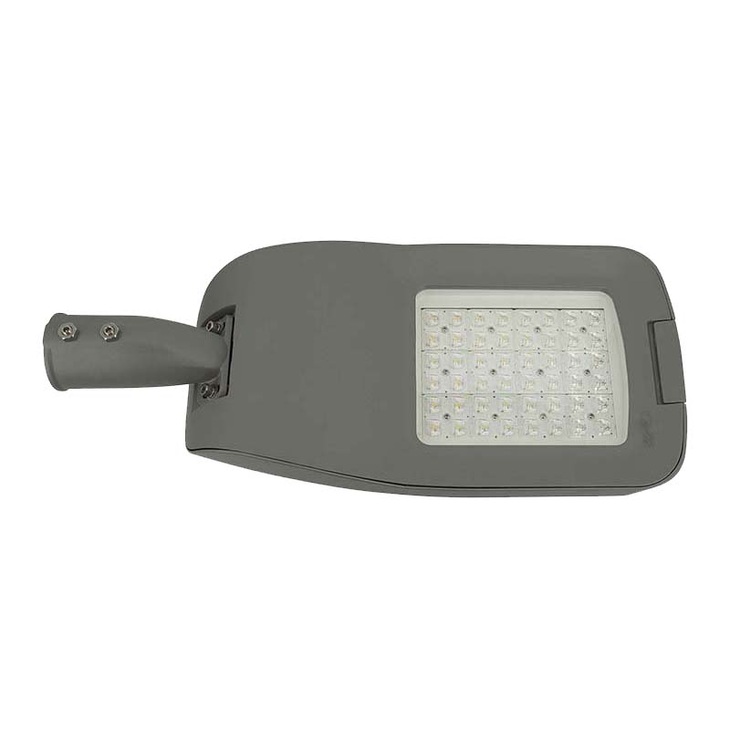

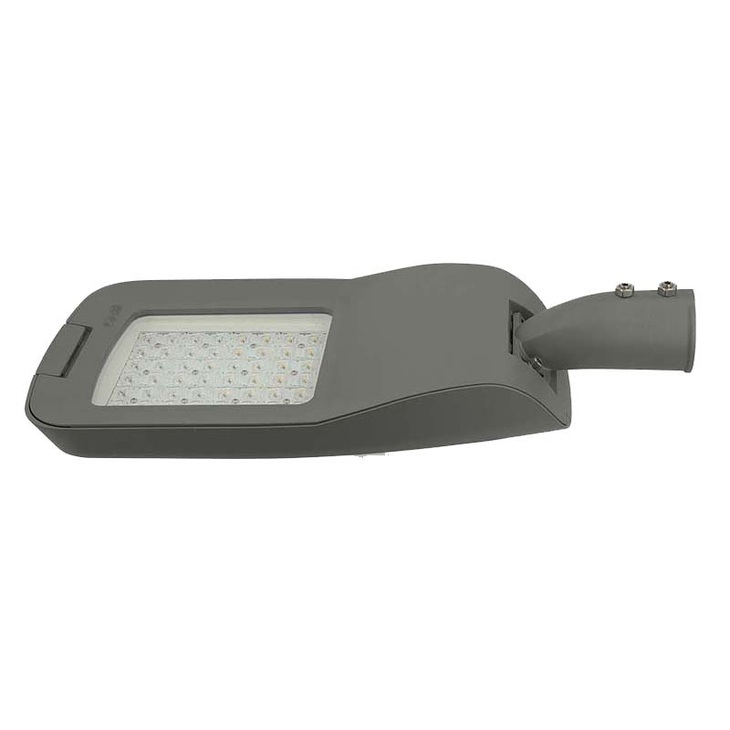

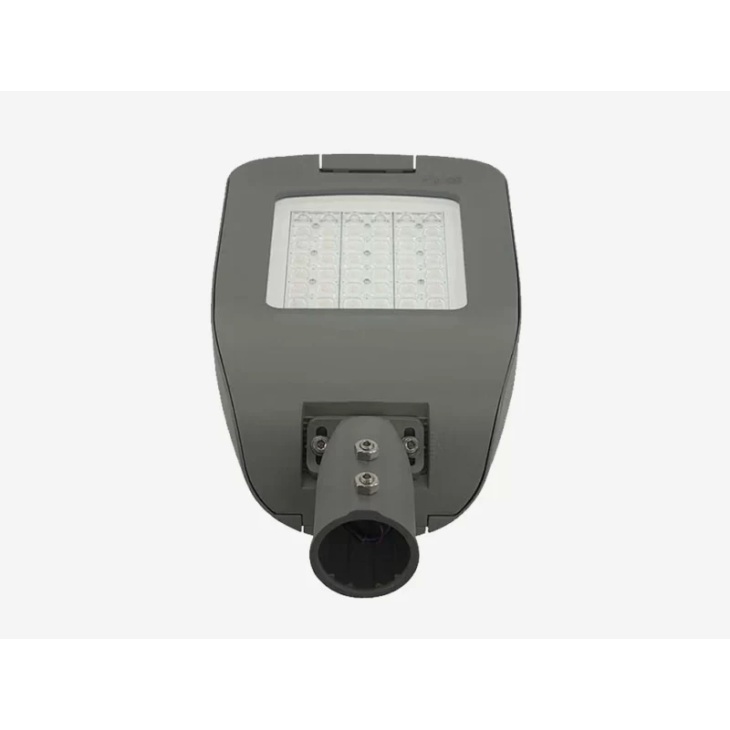

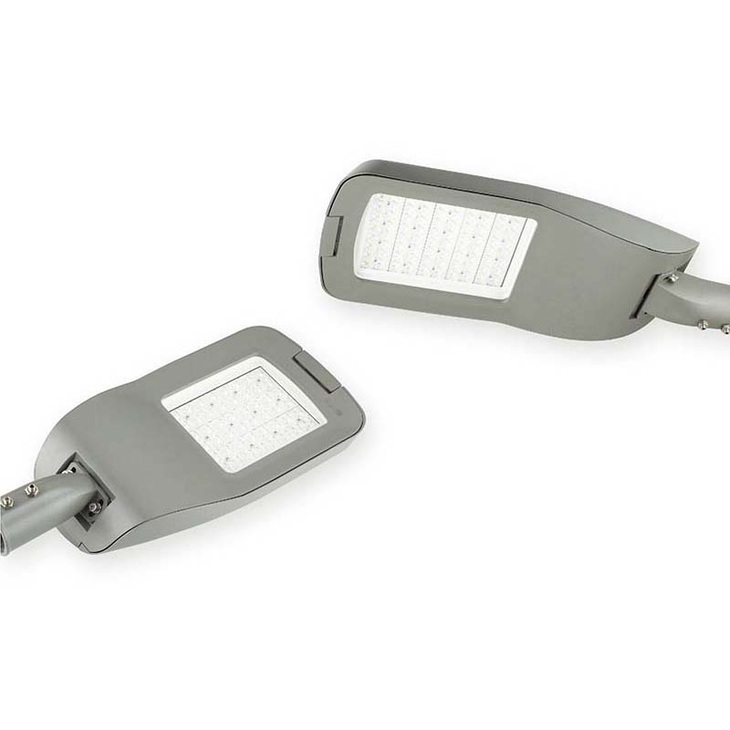

VEGA 2 Cobra Street Light
LED mould light distribution lens, diffuser with super white gempered glass. Surface anti-ageing electrostatic spray processing. Super resistance to corrosion. Even in bad weather, VEGA lighting still works well.
LED mould light distribution lens, diffuser with super white gempered glass.
Surface anti-ageing electrostatic spray processing. Super resistance to corrosion. Even in bad weather, VEGA lighting still works well.
Crafted from die-cast aluminum with UV-resistant coating, it ensures robust protection against harsh environments. Integrated cooling fins offer a self-cleaning function, enhancing durability with minimal maintenance.
Suitable for municipal roads, residential zones, and highways where efficiency and adaptability are essential. It also supports ecological areas requiring reliable and uniform illumination.
Tool-free opening and modular design enable easy installation and future upgrades, reducing long-term costs. Optional smart controls like DALI and photocells provide added energy optimization and flexibility.
Four sizes of pole-mounted LED street luminaires. IP66 and IK09 are shown in the supplied catalogue.
Applications: Road and street lighting, with the optical distribution and mounting arrangement selected for the project.
| Product Name | LED Qty. | Power | Wattage | V/HZ | Carton size(mm) |
|---|---|---|---|---|---|
| VEGA 2 | 16 | 40W | 2200k-6500k | 90-305V/50-60HZ | 660x285x160 |
| 32 | 60W | ||||
| 48 | 120W |
| Body | Die-Cast Aluminum. |
|---|---|
| Optical system | LED mould light distribution lens, diffuser with super white gempered glass. |
| Electric | Quick on/off connector when be open. |
| Finishing | Surface anti-ageing electrostatic spray processing. Super resistance to corrosion. Even in bad weather, VEGA lighting still works well. |
| Installation height | 6M-8M |
| Lifetime (Hrs) | > 100000 hrs (When you choose VEGA outdoor lighting, that means you don’t have to pay much in maintenance costs.) |
| Ambient Environment | -40℃to+55℃ |
| Installation pipe | Ø48mm / Ø60mm / Ø76mm |
| Power Factor | >0.95 |
| Class | I/II |
| Body | Die-Cast Aluminum |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Electric | Quick on/off connector |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09/IK10 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC 62471 |
| Voltage,V200-240 | Frequency,Hz 50-60 | |||||
| LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) | |
| VEGA1 | 8 | 8-17 | ＞0.95 | 0.1 | 4 | 4 |
| 16 | 20-30 | 6 | ||||
| 24 | 40-60 | 8 | ||||
| 36 | 60-80 | 8 | ||||
| VEGA2 | 16 | 30-40 | ＞0.95 | 0.15 | 6 | 6 |
| 32 | 40-70 | 8 | ||||
| 48 | 70-120 | 10 | ||||
| 72 | 120-150 | 10 | ||||
| VEGA3 | 48 | 110-130 | ＞0.95 | 0.22 | 10 | 8 |
| 64 | 130-150 | 12 | ||||
| 80 | 150-180 | 14 | ||||
| 120 | 180-220 | 14 | ||||
| VEGA4 | 80 | 150-180 | ＞0.95 | 0.32 | 12 | 12 |
| 96 | 180-200 | 14 | ||||
| 112 | 250-300 | 16 | ||||
| 168 | 250-400 | 18 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||
| 20GP Container 5.85*3.23*2.15 | VEGA1 | 550X250X110 | 1 | 1400 | 4 | 5600 | 4.5 | 6300 |
| VEGA2 | 655X295X175 | 1 | 830 | 6 | 4980 | 7 | 5810 | |
| VEGA3 | 760X370X175 | 1 | 565 | 8 | 4520 | 9 | 5085 | |
| VEGA4 | 890X420X190 | 1 | 400 | 12 | 4800 | 13 | 5200 | |
| 40GP Container 11.8*2.13*2.18 | VEGA1 | 550X250X110 | 1 | 2900 | 4 | 11600 | 4.5 | 13050 |
| VEGA2 | 655X295X175 | 1 | 1700 | 6 | 10200 | 7 | 11900 | |
| VEGA3 | 760X370X175 | 1 | 1150 | 8 | 9200 | 9 | 10350 | |
| VEGA4 | 890X420X190 | 1 | 820 | 12 | 9840 | 13 | 10660 | |
| 40HQ Container 11.8*2.13*2.72 | VEGA1 | 550X250X110 | 1 | 3400 | 4 | 13600 | 4.5 | 15300 |
| VEGA2 | 655X295X175 | 1 | 2000 | 6 | 12000 | 7 | 14000 | |
| VEGA3 | 760X370X175 | 1 | 1360 | 8 | 10880 | 9 | 12240 | |
| VEGA4 | 890X420X190 | 1 | 970 | 12 | 11640 | 13 | 12610 | |
| POLE HEIGHT | 4M | 6-8M | 8-12M | 10-16M | 18M |
| VEGA1 | 8-17W | 20-80W | |||
| VEGA2 | 40-70W | 70-150W | |||
| VEGA3 | 110-150W | 220W | |||
| VEGA4 | 150W | 200-300W | 300-400W |
| Body | Die-Cast Aluminum |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Electric | Quick on/off connector (for open condition) |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC 62471 |
| Model | Power (W) | LED Quantity (pcs) 3535/5050 |
|---|---|---|
| VEGA 1 | 8–80 | 8 / 16 / 24 / 36 |
| VEGA 2 | 30–150 | 16 / 32 / 48 / 72 |
| VEGA 3 | 110–220 | 48 / 64 / 80 / 120 |
| VEGA 4 | 150–400 | 80 / 96 / 112 / 168 |
Cobra head street light is energy saving,high efficiency with high class finishing tailor made for variantapplications such as highways, urban roads and streets inmunicipal, commercial areas, residential areas, car parks, motorways, running/biking paths and more.
Surface anti-ageing electrostatic spray processing. Super resistance to corrosion. Even in bad weather, VEGA lighting still works well.
Cobra head street light is energy saving,high efficiency with high class finishing tailor made for variantapplications such as highways, urban roads and streets inmunicipal, commercial areas, residential areas, car parks, motorways, running/biking paths and more. Namkoo can review your VEGA 2 enquiry.
