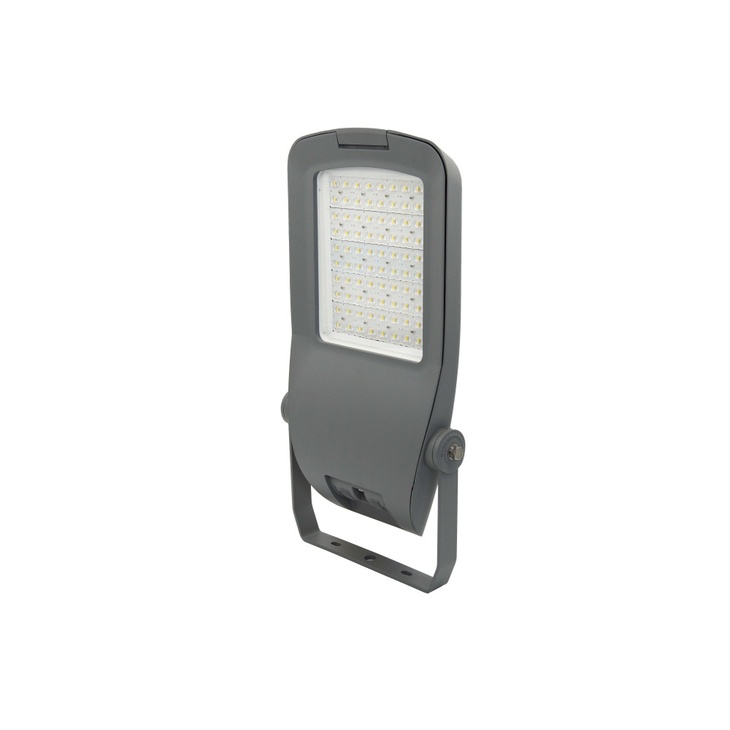

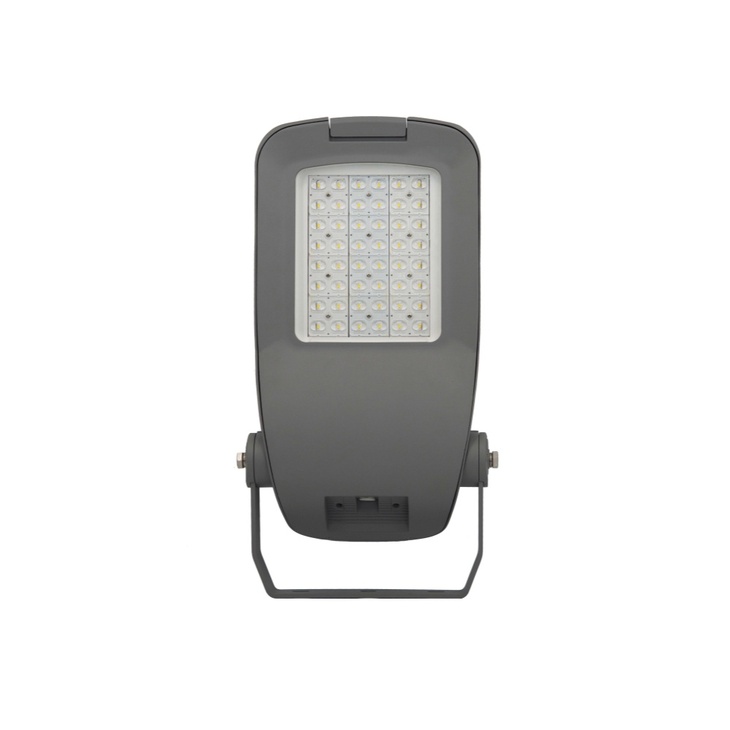

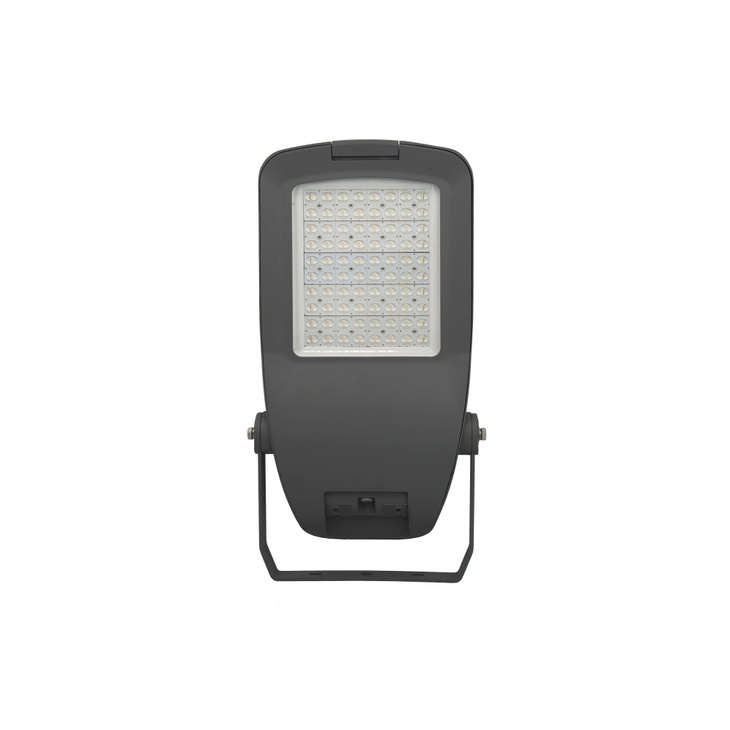

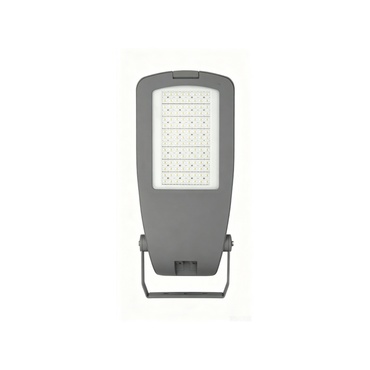

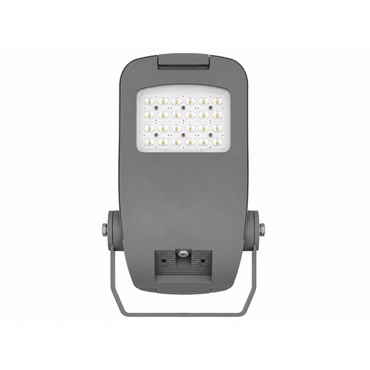

Four sizes of bracket-mounted LED flood luminaires. IP66 and IK09 are shown in the supplied product material.
Four sizes of bracket-mounted LED flood luminaires. IP66 and IK09 are shown in the supplied product material.
Applications: Outdoor area and flood-lighting projects, with the bracket, aiming and optics reviewed for the installation.
| Body | Die-Cast Aluminum |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Electric | Quick on/off connector |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09/IK10 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC 62471 |
| Voltage,V200-240 | Frequency,Hz 50-60 | |||||
| LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) | |
| VEGA1 | 8 | 8-17 | ＞0.95 | 0.1 | 4 | 4 |
| 16 | 20-30 | 6 | ||||
| 24 | 40-60 | 8 | ||||
| 36 | 60-80 | 8 | ||||
| VEGA2 | 16 | 30-40 | ＞0.95 | 0.15 | 6 | 6 |
| 32 | 40-70 | 8 | ||||
| 48 | 70-120 | 10 | ||||
| 72 | 120-150 | 10 | ||||
| VEGA3 | 48 | 110-130 | ＞0.95 | 0.22 | 10 | 8 |
| 64 | 130-150 | 12 | ||||
| 80 | 150-180 | 14 | ||||
| 120 | 180-220 | 14 | ||||
| VEGA4 | 80 | 150-180 | ＞0.95 | 0.32 | 12 | 12 |
| 96 | 180-200 | 14 | ||||
| 112 | 250-300 | 16 | ||||
| 168 | 250-400 | 18 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||
| 20GP Container 5.85*3.23*2.15 | VEGA 1F | 490X330X115 | 1 | 2150 | 4.5 | 9675 | 5.0 | 10750 |
| VEGA 2F | 600X320X130 | 1 | 1600 | 6.5 | 10400 | 7.5 | 12000 | |
| VEGA 3F | 715X380X140 | 1 | 1040 | 9.0 | 9360 | 10.0 | 10400 | |
| VEGA 4F | 870X420X140 | 1 | 780 | 13.5 | 10530 | 14.5 | 11310 | |
| 40GP Container 11.8*2.13*2.18 | VEGA 1F | 490X330X115 | 1 | 2900 | 4.5 | 13050 | 5.0 | 14500 |
| VEGA 2F | 600X320X130 | 1 | 2100 | 6.5 | 13650 | 7.5 | 15750 | |
| VEGA 3F | 715X380X140 | 1 | 1400 | 9.0 | 12600 | 10.0 | 14000 | |
| VEGA 4F | 870X420X140 | 1 | 1040 | 13.5 | 14040 | 14.5 | 15080 | |
| 40HQ Container 11.8*2.13*2.72 | VEGA 1F | 490X330X115 | 1 | 3600 | 4.5 | 16200 | 5.0 | 18000 |
| VEGA 2F | 600X320X130 | 1 | 2700 | 6.5 | 17550 | 7.5 | 20250 | |
| VEGA 3F | 715X380X140 | 1 | 1750 | 9.0 | 15750 | 10.0 | 17500 | |
| VEGA 4F | 870X420X140 | 1 | 1300 | 13.5 | 17550 | 14.5 | 18850 | |
| Model | Power (W) | LED Quantity (pcs) 3535/5050 |
|---|---|---|
| VEGA 1F | 8–60 | 8 / 16 / 24 |
| VEGA 2F | 18–120 | 16 / 32 / 48 |
| VEGA 3F | 50–180 | 48 / 64 / 80 |
| VEGA 4F | 85–300 | 80 / 96 / 112 |
| VEGA1-F | LEDs | 8 | 16 | 24 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Current(mA) | 350 | 520 | 700 | 350 | 520 | 700 | 350 | 520 | 690 | |
| Power(W) | 10 | 13 | 17 | 18 | 27 | 35 | 26 | 40 | 50 | |
| Lumens | 1100-1400 | 1500-1800 | 1900-2400 | 2200-2500 | 3400-3800 | 4400-4900 | 3000-3600 | 5000-5600 | 6300-6900 | |
| Lm/W | 110-140 | |||||||||
| VEGA2-F | LEDs | 16 | 32 | 48 | ||||||
| Current(mA) | 350 | 520 | 700 | 350 | 520 | 700 | 350 | 520 | 700 | |
| Power(W) | 18 | 27 | 35 | 34 | 50 | 65 | 50 | 75 | 100 | |
| Lumens | 2000-2500 | 3100-3800 | 4000-4900 | 3900-4700 | 5700-6900 | 7400-9000 | 5750-6800 | 8500-10350 | 11000-13800 | |
| Lm/W | 110-140 | |||||||||
| VEGA3-F | LEDs | 48 | 64 | 80 | ||||||
| Current(mA) | 350 | 520 | 700 | 350 | 520 | 700 | 350 | 520 | 750 | |
| Power(W) | 50 | 75 | 100 | 70 | 100 | 135 | 85 | 130 | 180 | |
| Lumens | 5500-6700 | 7500-9500 | 11000-12500 | 7500-10000 | 11000-14000 | 14500-19000 | 9000-13000 | 14000-18500 | 19500-25000 | |
| Lm/W | 110-140 | |||||||||
| VEGA4-F | LEDs | 80 | 96 | 112 | ||||||
| Current(mA) | 350 | 520 | 700 | 350 | 520 | 700 | 350 | 520 | 890 | |
| Power(W) | 85 | 130 | 170 | 100 | 150 | 200 | 120 | 180 | 300 | |
| Lumens | 9300-12000 | 13000-18000 | 18500-24000 | 11000-14000 | 16000-22000 | 21000-28500 | 13200-17000 | 19000-26000 | 33000-42000 | |
| Lm/W | 110-140 | |||||||||
| Vega1 | LEDS | 8 | 16 | 24 |
|---|---|---|---|---|
| CURRENT | 300-700mA | |||
| POWER(W) | 8-32 | 24-48 | 36-60 | |
| Vega2 | LEDS | 16 | 32 | 48 |
| CURRENT | 300-700mA | |||
| POWER(W) | 24-48 | 48-96 | 72-120 | |
| Vega3 | LEDS | 48 | 64 | 80 |
| CURRENT | 300-700mA | |||
| POWER(W) | 72-144 | 100-180 | 120-180 | |
| Vega4 | LEDS | 80 | 96 | 112 |
| CURRENT | 300-700mA | |||
| POWER(W) | 120-250 | 144-280 | 168-300 | |
