Fabrication Options:

1. Specify hot-dip galvanizing and any additional paint or powder coat for the project environment. Confirm the required coating standard and inspection documents with the order.
2. Steel grades may include Q235, Q345, Q420, Q460, A36 or S355 variants. Confirm the exact grade and material certificate; grades are not interchangeable without design review.
3. Section options include polygonal, round, constant-diameter and tapered profiles.
4. Confirm the welding procedure, applicable standard and inspection requirements for the approved pole design. Request the relevant fabrication records.
5. Match the baseplate shape, hole pattern and thickness to the engineered anchor layout.
6. Select slip, flange or bolted joints to suit the approved assembly drawing.
7. Confirm the coating colour and finish.
8. Service life depends on corrosion exposure, design and maintenance.
9. Applications include roadside CCTV, junctions, campuses and access monitoring, subject to equipment loads and site requirements.





Reference Dimensions:



Reference Arrangements:









Namkoo Steel Monitoring Poles

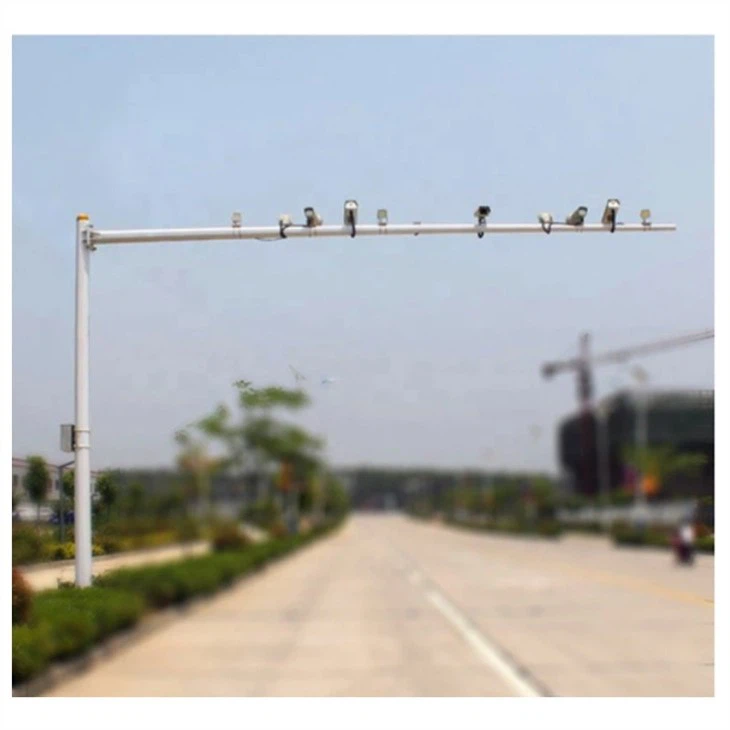

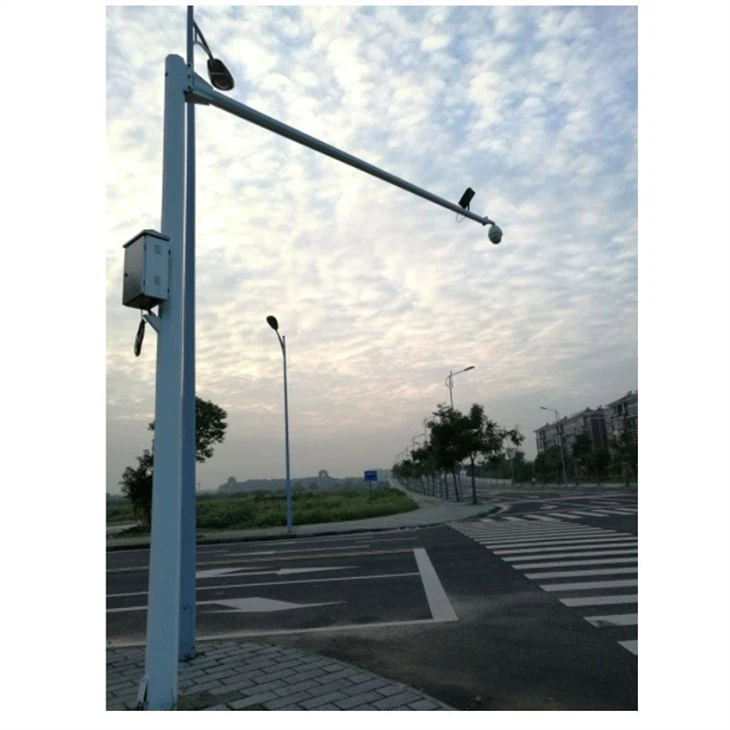

This steel CCTV pole reference uses a 6 m column with several arm lengths. Confirm camera position, equipment weight and projected area before selecting a configuration; visibility and image stability also depend on site layout and pole deflection.

CCTV Support Planning

A monitoring pole supports cameras, brackets and associated equipment. Include cable routes, maintenance access and all attachments in the design review. Check wind loading, foundation conditions and allowable movement for the intended camera performance.

Design Considerations

1. Steel Fabrication: Confirm the material grade, wall thickness and inspection requirements. The selected design must cover the actual equipment and environmental loads.

2. Equipment Connections: Specify camera brackets, arm positions and accessory loads before manufacture. Any later attachments require a review of the original design.

3. Installation Planning: Prepare the foundation, anchor layout, lifting arrangement and cable route from the approved drawings. Use a competent installation team.

4. Corrosion Protection: Confirm the galvanized coating and any additional finish for the exposure conditions. Protection life varies with environment and maintenance.

Available Design Options

1. Steel Grade: Options include Q235, Q345, Q420, Q460, A36 and S355 variants. Confirm the precise grade and supporting material documents with Namkoo.

2. Section Profiles:

   • Polygonal Section: Formed multi-sided shaft.
   • Round Section: Circular shaft profile.
   • Constant Diameter: Uniform shaft section.
   • Stepped Section: Connected size changes.
   • Tapered Section: Gradually changing shaft size.

3. Baseplate Design: Confirm plate dimensions, anchor spacing, hole form and foundation details as a coordinated assembly.

4. Weld Inspection: Specify the applicable welding procedure and inspection criteria in the order. Request records for the fabricated pole.

5. Section Joints: Select slip, flanged or bolted connections to suit the approved drawing.

6. Finish Options: Confirm galvanizing, additional paint or powder coat, and required colour.

7. Service Planning: Define inspection intervals and maintenance for the local exposure conditions.

Typical Locations

1. Road Corridors: Camera supports for traffic observation.
2. Urban Junctions: Mounting positions for the approved camera layout.
3. Campus Routes: Supports for designated monitoring points.
4. Public Buildings: Camera mounting around access routes.
5. Residential Areas: Equipment supports for shared routes.
6. Site Perimeters: Poles for specified boundary observation points.
7. Airport Sites: Supports subject to site design requirements.
8. Highway Routes: Mounting for approved roadside equipment.

Parameter	Reference Value
Product	Namkoo Steel CCTV Monitoring Pole
Shaft Section	Octagonal
Reference Height	6 meters (6000mm)
Reference Arm Lengths	4500mm, 7500mm, 12500mm
Steel Grade	Q235, Q345, Q420 or specified grade
Listed Mass	141 kg
Top/Base Size	180mm / 240mm
Arm Entry: Verify	300mm x 300mm x 11.75mm
Entry to Confirm	144 PCS: verify
Anchor Reference	M20 × 1000 × 6
Plate Reference	φ450*4.75mm
Wall Thickness	3.75mm
Finish	Confirm coating and colour
Design Life	Project-specific
Typical Sites	Roads, junctions, campuses, public buildings, residential routes and site perimeters

Send Namkoo the camera and accessory loads, required height, arm length, site wind conditions and foundation information. The reference table contains an arm entry of 300 × 300 × 11.75 and a 144 PCS entry without a reliable dimension label; confirm both against the manufacturer drawing. The 141 kg mass applies only to its specified configuration, not every pole and arm option.

---

Request the approved assembly drawing, material grade, coating specification and inspection documents with your quotation. Confirm camera stability and maintenance access before installation.

Request a CCTV Pole Quote
