Specify the Namkoo 90W LED solar street light around the conditions at your installation site. Panel capacity, battery storage and the lighting schedule must work together. Review local weather, mounting height and the area to be lit before choosing the final configuration.
System Planning
A Namkoo 90 W solar street light should be selected as a complete energy and lighting system. Confirm the actual LED input rating, nightly programme and local solar resource before choosing the panel, battery and mounting arrangement.
1. Solar Panel Sizing: Calculate daily watt-hours from the operating schedule, then allow for local peak-sun hours and system losses. Panel wattage alone cannot establish whether the battery will recharge reliably.
2. Battery Storage: Specify usable battery energy for the lighting load and required backup period. Account for allowable depth of discharge, temperature and ageing rather than comparing amp-hours without voltage.
3. LED Performance: Compare measured lumens, efficacy and optical distribution for the chosen model. A nominal 90 W label does not show how much usable light reaches the road.
4. Sensors and Timers: Agree a night-time dimming schedule and motion response suited to the route. Maintain the required minimum illumination during low-traffic periods.
5. Outdoor Components: Confirm the enclosure rating, pole finish, connectors and battery temperature limits for the site. Request relevant product documentation for the selected assembly.
6. Control Options: If remote monitoring is required, confirm available hardware, communications coverage and software terms. Treat remote control as a specified option.
7. Panel Position: Locate the panel clear of shade and set its orientation and tilt for the site. Check the mounting structure and wind loading before installation.

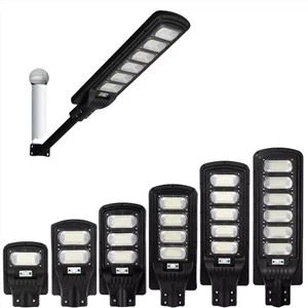

90 W Solar Lighting: Features and Uses
-An integrated solar assembly reduces external power cabling. Select a structurally suitable pole or wall mount; confirm the approved fixing method and service access.
-The panel charges the battery during daylight for night-time lighting.
-Dusk detection and timed dimming can manage the nightly load; confirm the supplied controller settings.
-The reference lists 180 LEDs; verify output for the selected configuration.
-Inspect the housing, panel and connections periodically. Follow the model instructions for activation and charging; solar lighting still requires planned maintenance.
Typical Sites: Roads, paths, parks, campuses, yards and farm access routes, subject to a suitable lighting design.
What mounting height suits a 90 W solar street light?
The reference suggests 6–8 m, but final height depends on road width, pole spacing, optics and the required light levels. Ask for a photometric calculation and check structural requirements before selecting the pole.
| Parameter | Model Reference |
|---|---|
| LED Type | LED |
| Energy Source | Solar |
| Housing Material | Aluminum alloy + PC |
| Panel Type | 6 V Polycrystalline |
| Lighting Control | Photocell and Radar Sensor |
| CCT | 7500K |
| Ingress Rating | IP67 |
| Charging Reference | 6–8 hours in full sun; varies |
| Runtime Reference | Approx. 13 hours |
| Model Mounting Range | 3–5 m; confirm model |
| Listed Temperature | -13℉ to 149℉ |
| Housing Colour | Black |
| Rated LED Life | 50,000 hours |
| Nominal Rating | 90W |
| LED Array | 2835SMD LED Chip (180pcs) |
| Coverage Reference | 120 m²; verify layout |
| Mounting Arm Length | 40cm |
Installation and Operation
Plan the Namkoo 90 W solar light around the site and operating schedule. The model table lists a 3–5 m mounting range, while general guidance mentions 6–8 m; confirm the exact luminaire and photometric design before choosing a pole. The listed 120 m² coverage and approximate 13-hour runtime depend on mounting, light levels, battery charge and control settings.
Keep the panel free of shade and arrange periodic cleaning and inspection. Confirm battery charging limits separately from the listed operating temperature. Remote monitoring is an option to verify with Namkoo, rather than a standard feature established by the photocell and radar specification.
A 90W rating alone does not define the lighting result. Share the road or site dimensions, pole spacing, mounting height and desired operating schedule so the complete solar lighting arrangement can be reviewed. Namkoo can discuss product selection and the information needed for a quotation. Confirm the proposed battery, panel, control settings and delivery details in writing.
