Design Features

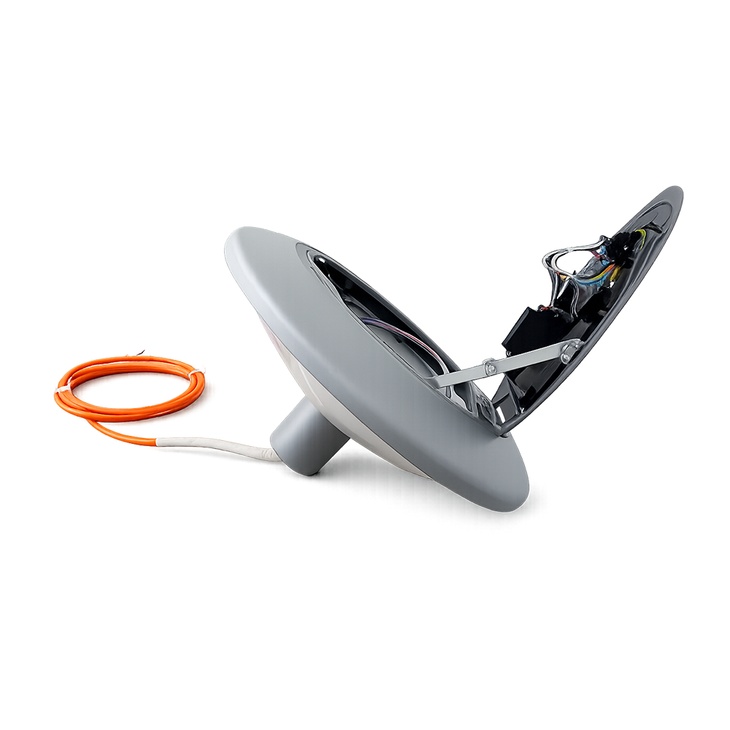

die-cast aluminum disc body with separable LED modules for easy upkeep. Anti-yellow PC lens and full sealed housing deliver weatherproof performance, while the integrated base allows fast pole mounting.
Ideal Applications
Suitable for villas, zen gardens, classical scenic zones, parks, communities, plazas and resorts.
Special Advantages
Soft ambient light, stylish outlook, weatherproof durability, simple setup & maintenance, fits all landscape styles.
| Body | Die-Cast Aluminum and PC |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Model name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |
| 512 pole top | 8 | 8-25 | ≥0.95 | 0.21 | 4 | 9 |
| 16 | 16-50 | 6 | ||||
| 24 | 24-75 | 8 | ||||
| 32 | 32-100 | 8 |
| Container size(M) | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | ||||||
| 20GP Container 5.85*3.23*2.15 | 530X530X290 | 1 | 341 | 7.5 | 2561 | 9 | 3073 | 0.082 | 28 |
| 40GP Container 11.8*2.13*2.18 | 530X530X290 | 1 | 707 | 7.5 | 5305 | 9 | 6366 | 0.082 | 58 |
| 40HQ Container 11.8*2.13*2.72 | 530X530X290 | 1 | 829 | 7.5 | 6220 | 9 | 7463 | 0.082 | 68 |
| POLE HEIGHT | 4M | 6M | 8M |
| 512 Pole top | 8-25W | 25-50W | 50-100W |
