Quotation Scope

Ask Namkoo for a quotation covering the steel lighting pole, arm bracket and anchor assembly required by your drawing. Price depends on dimensions, material, coating, quantity and packing. Identify any luminaires or electrical accessories separately so offers cover the same scope.

Project Coordination

Provide the installation height, outreach, luminaire load and foundation details. Agree the required drawings, inspection records and delivery terms before manufacture. The enquiry can cover:

- Drawing and interface review

- Material and weld inspection

- Protective packing and freight

- Written service and warranty terms

Confirm the final configuration and supply responsibilities in the order documentation.

A coordinated pole, bracket and anchor assembly helps avoid mismatched fixing dimensions at site. Send the approved layout and loading requirements to Namkoo for review, including pole-top fittings, baseplate holes and anchor projection. Confirm installation instructions before delivery.



Assembly Details

Namkoo Pole Components

1. Reference pole height: 6–12 m
2. Confirm the design loads
3. Specify fixture fixing points
4. Match foundation interfaces
5. Define service-door and cable access
6. Reference wall range: 3–5 mm
7. Specify galvanizing and any additional powder coat for the exposure conditions
8. Confirm manufacturing dates



Discuss transport and unloading

Pole Shaft: Confirm the conical, square or polygonal section and exact steel grade in the approved drawing. Request material and fabrication documents for the supplied configuration.

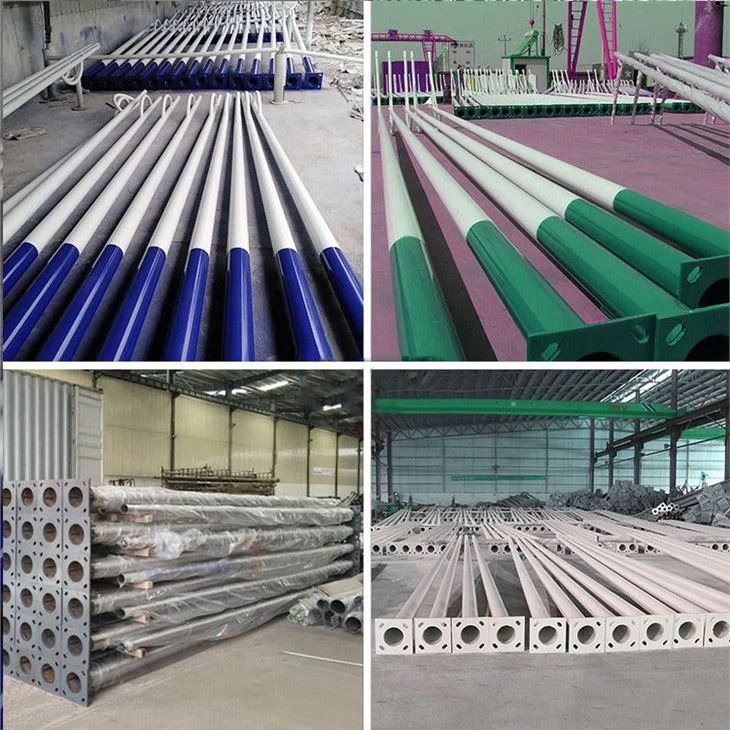

Finish: Namkoo can quote galvanizing with an optional paint or powder topcoat. Specify the colour and coating requirements for the project.

Top Fittings: Identify side-entry or top-mounted luminaires and specify any cap, spigot and cable opening required by the assembly.

Anchor Set: Specify bolt grade, diameter, embedment, projection and coating from the foundation drawing. Confirm nuts, washers and setting template in the supply scope.

Baseplate: Match bolt circle, plate thickness and hole dimensions to the approved anchor design. Confirm weld details and installation tolerances.

Base Cover: Specify a cover if required for the project.

Access Door: Confirm service-door position, dimensions and fastening method. Provide sufficient access for the specified wiring and accessories.

Earthing Connection: Confirm the earth terminal and connection hardware in the electrical installation details.
Electrical Fittings: List terminal blocks, protective devices and mounting rails separately. Check their ratings and space requirements before manufacture.

Pole and Anchor Interfaces

1. 6–12 m pole reference range
2. Specify equipment loads
3. Confirm bracket fixing dimensions
4. Check anchor alignment
5. Provide service-door and cable requirements
6. 3–5 mm wall reference range
7. Confirm the galvanized finish and any additional coating in the order
8. Agree production and inspection dates

Confirm freight and unloading

Pole Section: Select the section profile and grade from the structural design. Include outreach, luminaire weight and wind area; confirm material documents rather than assuming listed grades or standards are interchangeable.

Coating Scope: Namkoo can review the required finish for the shaft, bracket and anchor hardware. Confirm which surfaces are galvanized or painted and how any site damage will be repaired.

Top Interface: Check the luminaire entry diameter, bracket attachment and cap arrangement. Include cable openings and weather sealing in the assembly drawing.

Anchor Dimensions: Match anchor diameter, length, thread projection and bolt circle to the foundation and baseplate. Confirm the steel grade, coating and supplied nuts and washers.

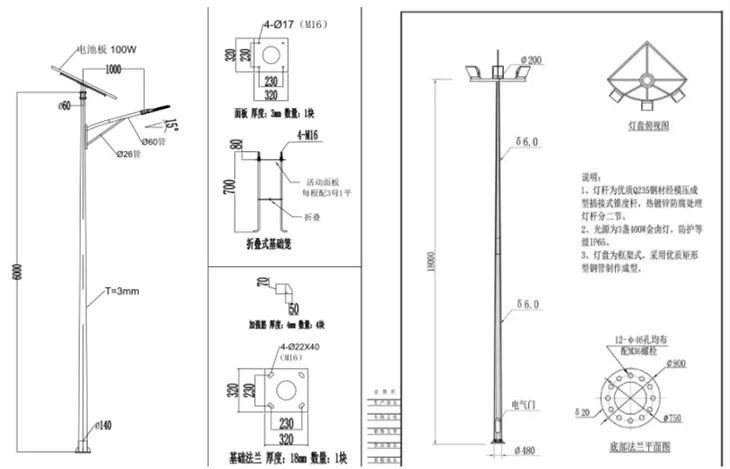

Baseplate Interface: Check plate thickness, hole dimensions and weld details before manufacture. The anchor template must correspond to the final approved plate drawing.

Optional Cover: Confirm cover dimensions and inclusion in the quote.

Cable Access: Set the door position and opening size around the electrical components while maintaining the approved pole design. Confirm cover fastening and service access.

Earth Terminal: Specify the connection location and hardware for the project earthing arrangement.
Internal Accessories: Agree whether electrical terminals, fuses or circuit-breaker rails are included. Check their ratings and installation space separately from the steelwork.





Preparing Your Enquiry



• Specify the pole steel grade and required material documentation.
• Provide the mounting height, outreach and luminaire load for design review.
• Send the bracket and pole connection dimensions with your enquiry.
• Confirm anchor diameter, grade, embedment and thread projection.
• Match the baseplate hole pattern to the approved foundation drawing.
• List the shaft, arm bracket, anchor set, nuts, washers and template required in the quotation so component interfaces are reviewed together.
• Agree galvanizing, paint or powder coating for the installation environment.
• Define the required inspection and acceptance records.

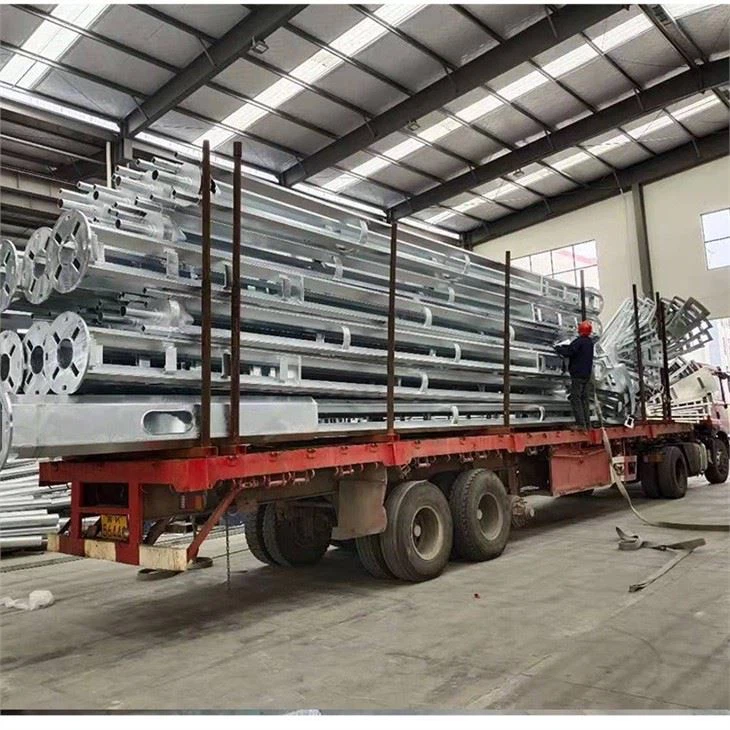

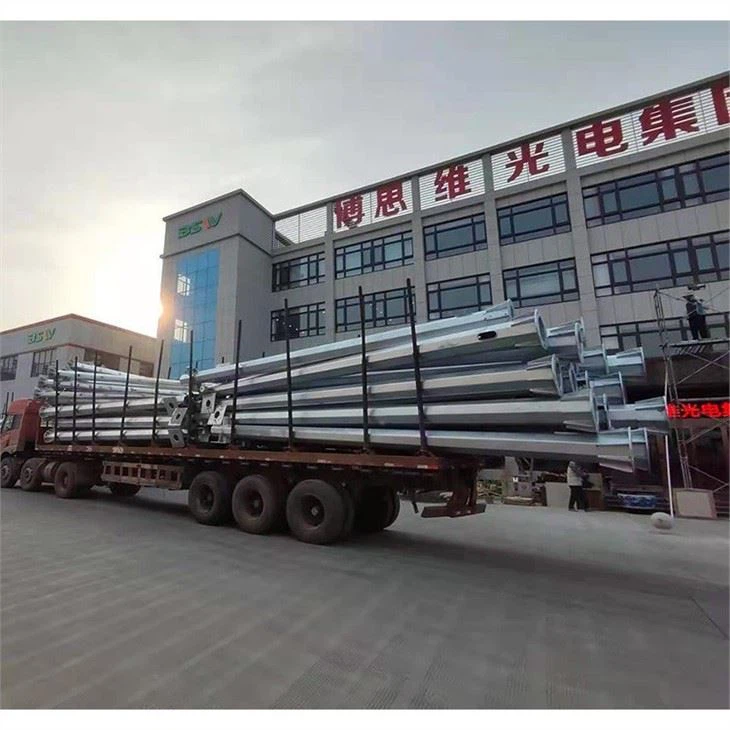

• Confirm protective packing and handling requirements for transport.
• Ask Namkoo to state production timing, delivery scope and written warranty terms. Resolve drawing revisions before manufacture to reduce the risk of mismatched parts at installation.

Request a Pole Assembly Quote
