Circular outdoor luminaires in pole-top, pendant, suspension and side-entry configurations. IK10 is shown in the supplied catalogue.
Circular outdoor luminaires in pole-top, pendant, suspension and side-entry configurations. IK10 is shown in the supplied catalogue.
Applications: Urban, landscape and residential lighting projects.
Slim, aerodynamic LED street light with die-cast aluminum housing for durability and efficient heat dissipation. It features a high-density LED optical system for uniform illumination, with a sealed weather-resistant structure
Suitable for urban roads, highways, residential lanes, parking lots, industrial areas, parks, campuses and other municipal public outdoor projects.
High efficiency & low power, long life with low maintenance. Great heat control for stable operation. Even light removes dark zones; weatherproof for outdoor use
| Model | Power (W) | LED Quantity (pcs) 3535/5050 |
|---|---|---|
| 512-P | 8–100 | 8 / 16 / 24 / 32 |
| 512-HP · 4 modules | 8–100 | 8 / 16 / 24 / 32 |
| 512-HP · single module | 12–100 | 12 / 24 / 36 |
| 512-HS · 4 modules | 8–100 | 8 / 16 / 24 / 32 |
| 512-HS · single module | 12–100 | 12 / 24 / 36 |
| 512-L · 4 modules | 8–100 | 8 / 16 / 24 / 32 |
| 512-L · single module | 12–100 | 12 / 24 / 36 |

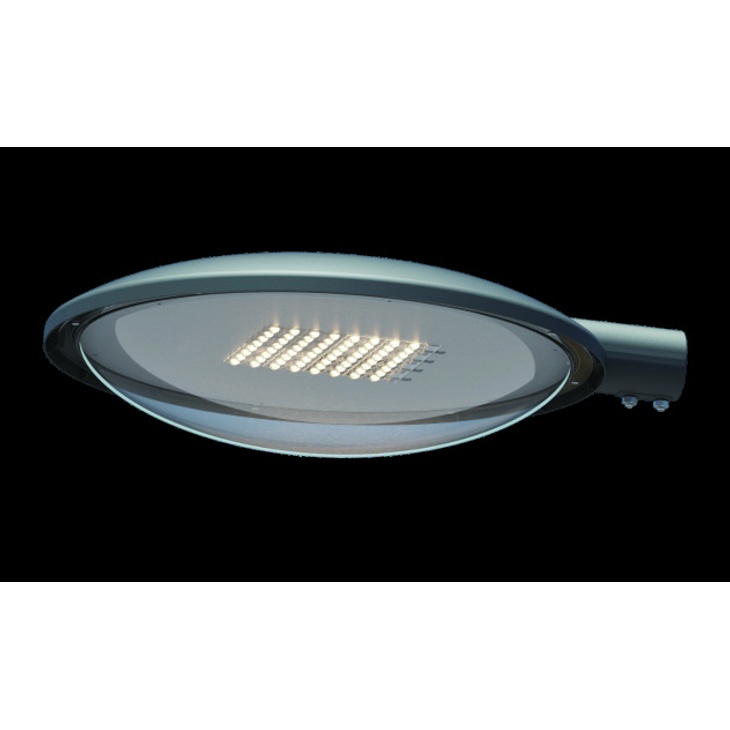

| 690-L | 16–140 | 16 / 32 / 48 / 64 |
| Body | Die-Cast Aluminum and PC |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Model name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |
| 690-L | 16 | 10-30 | ≥0.95 | 0.38 | 4 | 15 |
| 32 | 20-70 | 6 | ||||
| 48 | 30-100 | 8 | ||||
| 64 | 50-140 | 10 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | 690-L | 700X800X220 | 1 | 228 | 13.8 | 3141 | 15 | 3415 | 0.123 | 28 |
| 0.11 | 28 | |||||||||
| 0.071 | 28 | |||||||||
| 40GP Container 11.8*2.13*2.18 | 690-L | 700X800X220 | 1 | 472 | 13.8 | 6507 | 15 | 7073 | 0.123 | 58 |
| 0.11 | 58 | |||||||||
| 0.071 | 58 | |||||||||
| 40HQ Container 11.8*2.13*2.72 | 690-L | 700X800X220 | 1 | 553 | 13.8 | 7629 | 15 | 8293 | 0.123 | 68 |
| 0.11 | 68 | |||||||||
| 0.071 | 68 | |||||||||
| POLE HEIGHT | 4M | 6M | 8M | 10M |
| 690-L | 10-30W | 20-70W | 30-100W | 50-140W |
