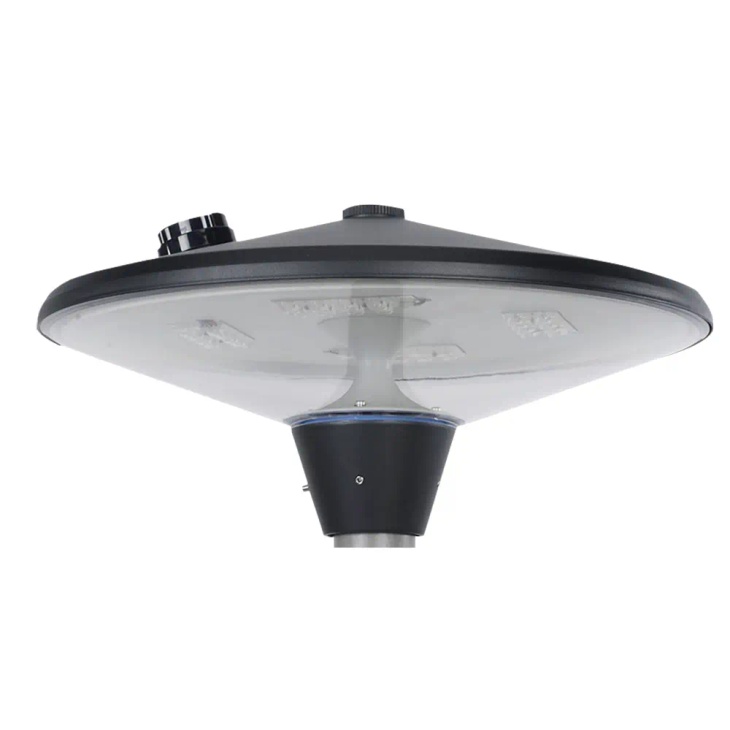

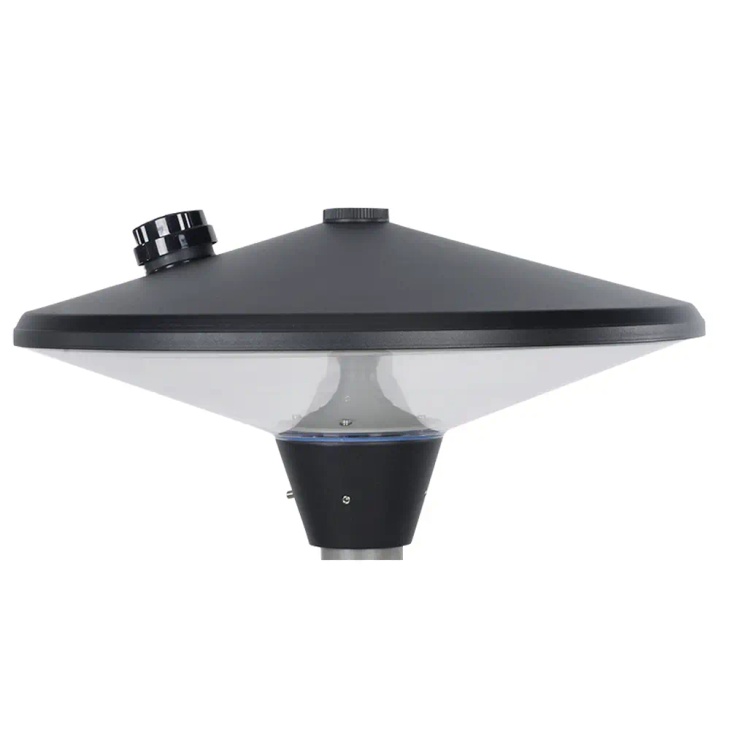

The premium Keira Ellips series LED garden light is engineered for high-end urban landscaping, pathways, and commercial area lighting. Featuring professional Type I–V precision optics, an innovative tool-less entry design for effortless maintenance, and future-proof NEMA/ZHAGA smart control options, it delivers unmatched performance with industrial-grade IP66 and IK10 durability.
The premium Keira Ellips series LED garden light is engineered for high-end urban landscaping, pathways, and commercial area lighting. Featuring professional Type I–V precision optics, an innovative tool-less entry design for effortless maintenance, and future-proof NEMA/ZHAGA smart control options, it delivers unmatched performance with industrial-grade IP66 and IK10 durability.
die-cast aluminum head paired, featuring a sealed all-weather waterproof enclosure and a standard top pole mount socket.
Suitable for Courtyards, parks, plazas, scenic zones and residential landscape walkways.
Easy single-module replacement, even soft lighting, classic decorative shape, efficient heat dissipation, fully weatherproof for outdoor use.
A low-profile post-top luminaire with LED and optical options for streets, squares and pedestrian areas.
Applications: Urban streets, Plazas, Pedestrian areas, Public realm.
| Technical Item | Details |
|---|---|
| Input | Voltage: 200v-240VAC, frequency: 50/60Hz |
| Body | Die-Cast Aluminum |
| Optical system | Type I-V or Customized special |
| Color temperature | 2200K to 6500K |
| Ambient environment | -40°C to +55°C |
| Control inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I/II |
| IP rating | IP66 |
| IK rating | IK09 / IK10 |
| Surge Protection | 10KV, 25KV, 10KA |
| Options | Photocell, NEMA socket, ZHAGA |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC-62471 |
| Model Name | LEDs | Power (W) | PF | Max. Wind Load Area | Pack Size (mm) | Weight (kgs) | Pcs/40HQ | Pcs/20ft |
|---|---|---|---|---|---|---|---|---|
| KEIRA ELLIPS | 20 | 20-60 | ≥0.95 | 0.30 | 620×620×320 | 8.00 | 550 | 220 |
| 32 | 50-100 | ≥0.95 | 0.30 | 620×620×320 | 8.00 | 550 | 220 | |
| 36 | 50-100 | ≥0.95 | 0.30 | 620×620×320 | 8.00 | 550 | 220 |
| Body | Die-Cast Aluminum and PC |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC-62471 |
| Model name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |
| Keira Ellips | 8 | 10-20 | ≥0.95 | 0.3 | 4 | 8 |
| 16 | 20-40 | |||||
| 32 | 40-100 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | Keira Ellips | 620X620X320 | 1 | 228 | 7 | 1593 | 8 | 1821 | 0.123 | 28 |
| 0.16 | 28 | |||||||||
| 0 | 0 | 0.071 | 28 | |||||||
| 40GP Container 11.8*2.13*2.18 | Keira Ellips | 620X620X320 | 1 | 472 | 7 | 3301 | 8 | 3772 | 0.123 | 58 |
| 0.16 | 58 | |||||||||
| 0 | 0 | 0.071 | 58 | |||||||
| 40HQ Container 11.8*2.13*2.72 | Keira Ellips | 620X620X320 | 1 | 553 | 7 | 3870 | 8 | 4423 | 0.123 | 68 |
| 0.16 | 68 | |||||||||
| 0 | 0 | 0.071 | 68 | |||||||
| POLE HEIGHT | 3 | 4 | 5 |
| Keira Ellps | 10-20w | 20-40w | 40-100 |
| Model | Power (W) | LED Quantity (pcs) 3535/5050 |
|---|---|---|
| KEIRA ELLIPS | 20–100 | 20 / 32 / 36 |
The premium Keira Ellips series LED garden light is engineered for high-end urban landscaping, pathways, and commercial area lighting. Featuring professional Type I–V precision optics, an innovative tool-less entry design for effortless maintenance, and future-proof NEMA/ZHAGA smart control options, it delivers unmatched performance with industrial-grade IP66 and IK10 durability.
die-cast aluminum head paired, featuring a sealed all-weather waterproof enclosure and a standard top pole mount socket.
Suitable for Courtyards, parks, plazas, scenic zones and residential landscape walkways.
Easy single-module replacement, even soft lighting, classic decorative shape, efficient heat dissipation, fully weatherproof for outdoor use.
A low-profile post-top luminaire with LED and optical options for streets, squares and pedestrian areas.
Applications: Urban streets, Plazas, Pedestrian areas, Public realm.
Post-top; Type II, Type III, Type IV, Type V optical distributions. Confirm the mounting, LED configuration and exact photometric file for the selected model.
