Compare Namkoo LED stadium flood lights in 100W, 150W, 250W and 400W options. Select the rating and beam arrangement from the area size, mounting height and lighting requirements. These fixtures can be considered for sports areas and other large outdoor spaces.
Namkoo LED stadium floodlight enquiries should be based on the venue layout and required light levels. The FL27A reference below lists 100–200 W models. Confirm the selected optic, mounting height and photometric performance before using this range for sports or large-area lighting.
FL27A Configuration Notes:
Power Options: The model table lists 100 W, 120 W, 150 W and 200 W. Confirm any other wattage separately rather than treating it as the same configuration.
Lighting Output: Request measured lumens and a photometric file for the selected CCT and optic. Uniform field illumination depends on the complete layout and aiming plan.
Power Consumption: Compare input power at equivalent maintained light levels. Operating hours and dimming settings determine energy consumption and potential savings.
Housing Assembly: The table lists die-cast aluminium and a PC lens. Confirm the actual assembly, impact rating and environmental limits for the selected model.
Optic Choices: Listed distributions include 30°, 60°, 90° and Type II, III or IV. Select the optic for the target area and spill-light requirements.
Bracket Positioning: Confirm the mounting interface and structural load, then set the bracket to the approved aiming angle and secure it as instructed.
Enclosure Ratings: IP66/IK08 is listed for this range. Verify the model documentation and cable-entry installation for the site conditions.
Controls and Colour: Specify colour temperature, optic and any dimming interface in the order. Confirm driver compatibility with the proposed controls.
| Parameter | Model Reference |
|---|---|
| Model Options | FL27A-100WS, FL27A-120WS, FL27A-150WS, FL27A-200WM |
| Input Power | 100W, 120W, 150W, 200W |
| Input Voltage | 100-277V |
| Power Factor | >0.95 |
| LED Package | SMD3030 |
| LED Count | 192 (100W, 120W, 150W), 384 (200W) |
| LED Arrangement | 24P8S (100W, 120W, 150W), 48P8S (200W) |
| Listed Efficacy | >140 LM/W |
| CCT Range | 3000-6500K |
| CRI | >70 |
| Enclosure Ratings | IP66/IK08 |
| Housing Dimensions | 330x410x78 mm (100W, 120W, 150W), 431x525x79 mm (200W) |
| Optic Options | 30°/60°/90° or Type II/III/IV; confirm model |
| Assembly Materials | Die-cast aluminum lamp housing + PC lens |
| Ambient Range | -30℃~+60℃ |
| Humidity Range | 10%~90% |
| Life / Warranty Reference | >50,000 h; confirm warranty terms |
Technical Selection
Namkoo FL27A Floodlight Range
The FL27A model table covers 100 W, 120 W, 150 W and 200 W variants. Evaluate the range using a site lighting calculation and the selected luminaire datasheet. Other wattages need a separate model reference and should not be assumed to share the same housing, optics or driver.
1. Input Power: Choose among the listed 100–200 W variants using required light levels, pole positions and photometric data. Confirm the final model in the quotation.
2. Output and CRI: Request tested lumens at the chosen CCT and CRI. The table lists efficacy above 140 lm/W and CRI above 70; verify values for the supplied model.
3. Operating Energy: Compare power and controls at equivalent illumination. Confirm switching or dimming modes for training, events or routine area use.
4. Housing Materials: The model reference lists die-cast aluminium with a PC lens. Check environmental and mechanical ratings against the installation conditions.
5. Light Distribution: Select 30°, 60°, 90° or the listed asymmetric distributions using a lighting layout. Beam width alone does not establish uniformity.
6. Mounting and Aiming: Confirm bracket fit, supporting-structure loads and access for maintenance. Aim each fixture according to the approved calculation.
7. Outdoor Protection: The table lists IP66/IK08. Verify enclosure ratings, cable-entry sealing and ambient limits for the actual model.
8. Ordering Details: State model, input voltage, CCT, optic and controls with your quantity. Ask Namkoo for the datasheet, photometric file and written supply terms.

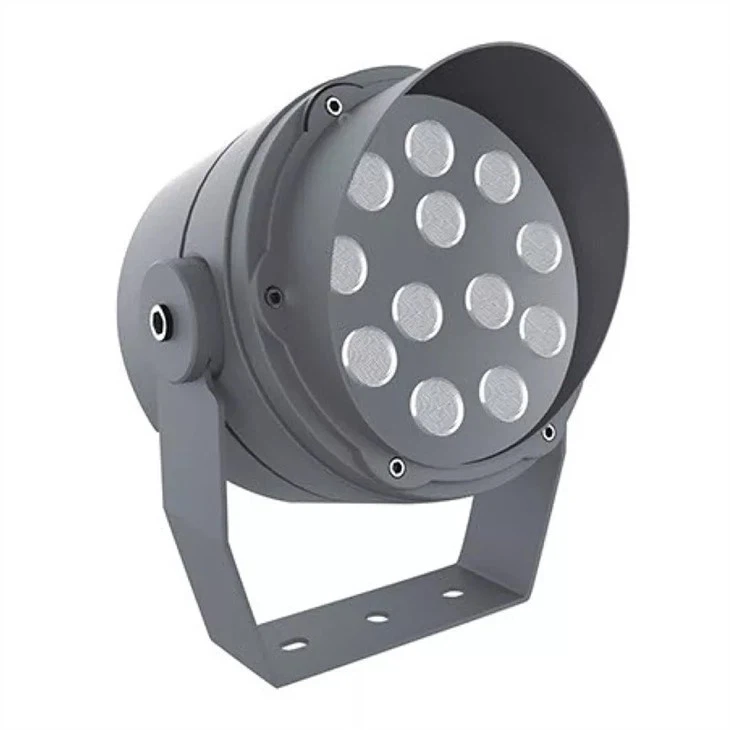

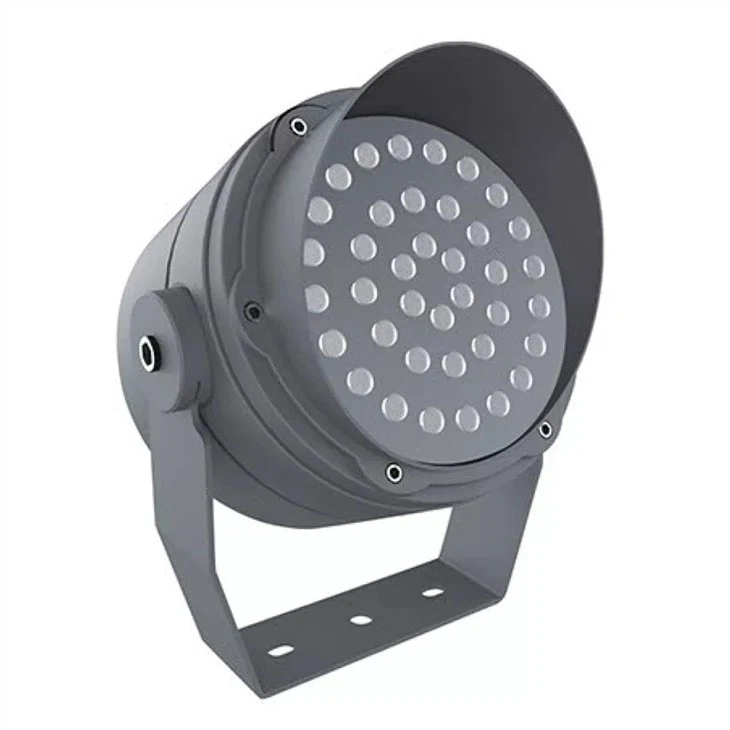

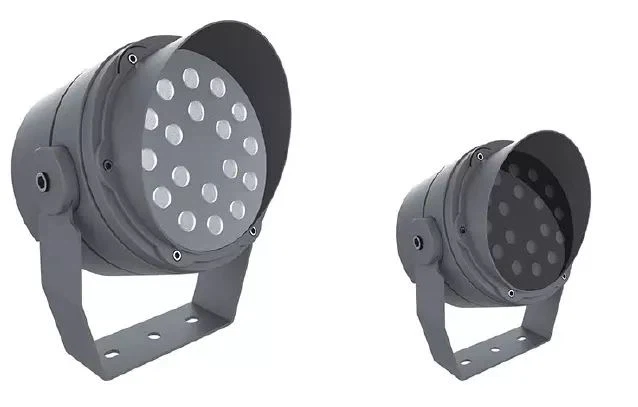

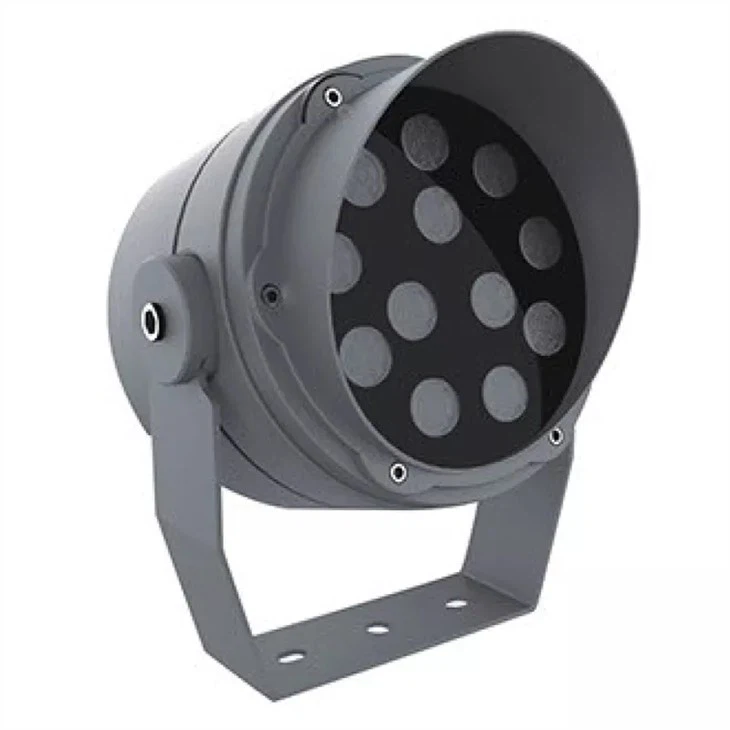

Namkoo FL27A Overview: The FL27A floodlight combines a die-cast aluminium housing with listed PC optics. Confirm the coating and enclosure ratings for the site, particularly in coastal or corrosive environments. Use the selected model data to assess thermal conditions, mounting and light distribution.
Model Selection:
Project Uses:
Energy Assessment: Estimate consumption from the selected wattage, fixture quantity, operating hours and controls. Compare alternatives at equivalent maintained light levels.
Installation Review:
Send Namkoo the site layout, pole heights and lighting targets for a configuration enquiry. Request the datasheet, photometric file and written supply terms for the selected FL27A model.
For stadium flood lighting, share the area dimensions, mast locations and required lighting levels. Include any glare, spill-light or operating-hour requirements. Namkoo can discuss the fixture options and photometric information needed for the design. Confirm quantities, aiming and mounting details before ordering.
