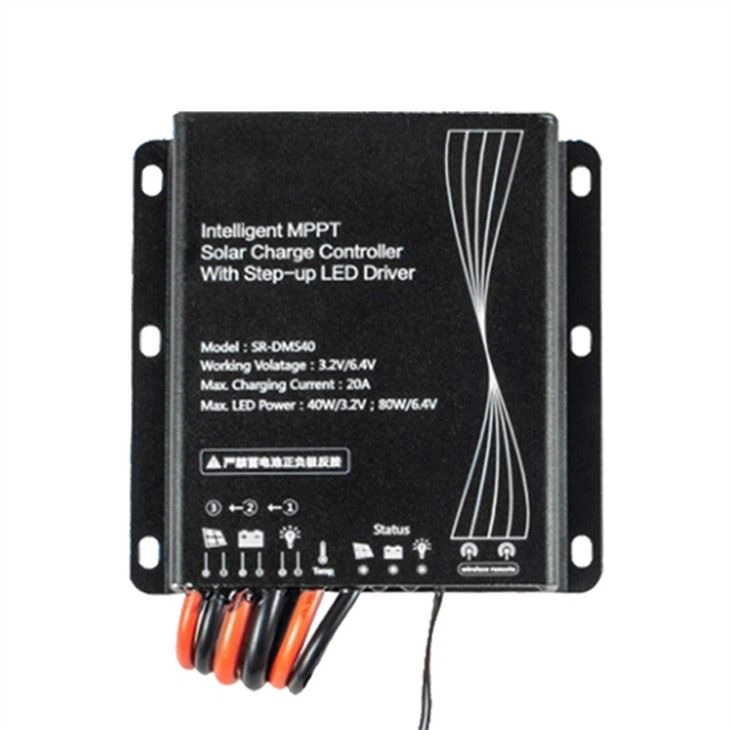

Manage charging and discharge in a 12V/24V hybrid solar street lighting system. This controller coordinates the solar panel, battery and lighting load. Match the battery chemistry, voltage and load requirements before choosing a configuration.
Manage charging and discharge in a 12V/24V hybrid solar street lighting system. This controller coordinates the solar panel, battery and lighting load. Match the battery chemistry, voltage and load requirements before choosing a configuration.
The controller range includes charge management, load switching and communication options. Confirm the exact model and charging method when specifying your solar lighting system.
Battery compatibility depends on the selected charging program. Discuss lead-acid, lithium-ion or GEL battery requirements for off-grid lighting, monitoring or caravan applications before ordering.

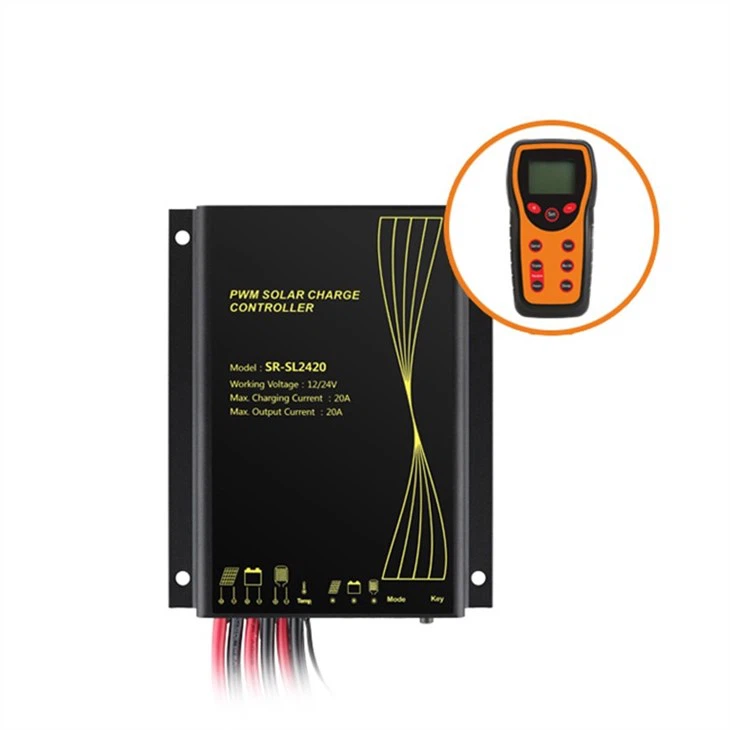

1. Listed enclosure: IP68 with an aluminium housing; confirm the model rating. 2. Nominal system voltage: 12V/24V. 3. LED display and control keys. 4. The listed PWM version uses a three-stage charging programme; match charging and equalization settings to the battery type. 5. Up to five load modes are listed. 6. Charging programmes cover specified lead-acid and lithium battery types. 7. An external sensor supports temperature compensation. 8. Settings can be retained after power loss. 9. Indicators show operating status. 10. Listed protections include overcharge, over-discharge, overload, short circuit and reverse connection. 11. TVS surge protection is listed. Verify functions for the selected controller.
Product Description
Controller Details
Technical Parameters

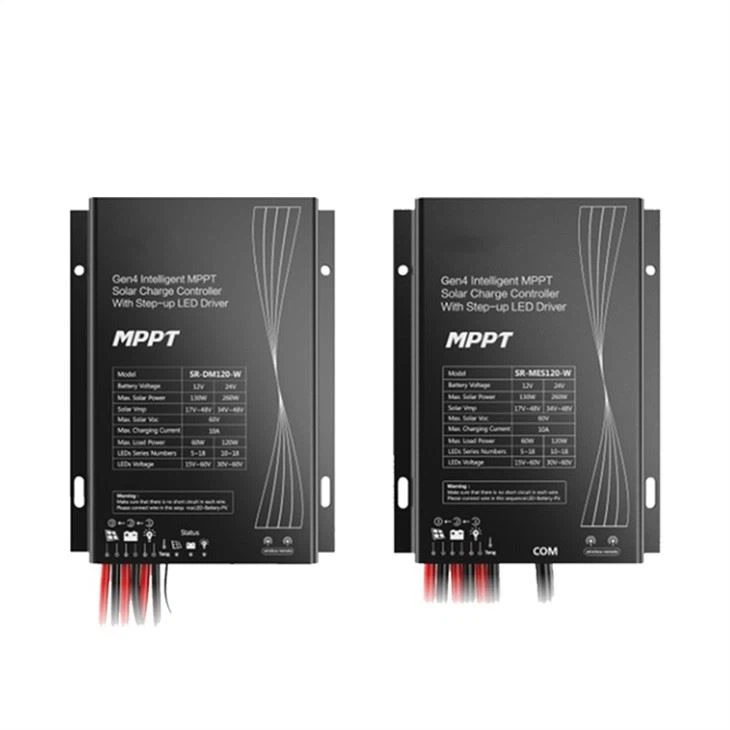

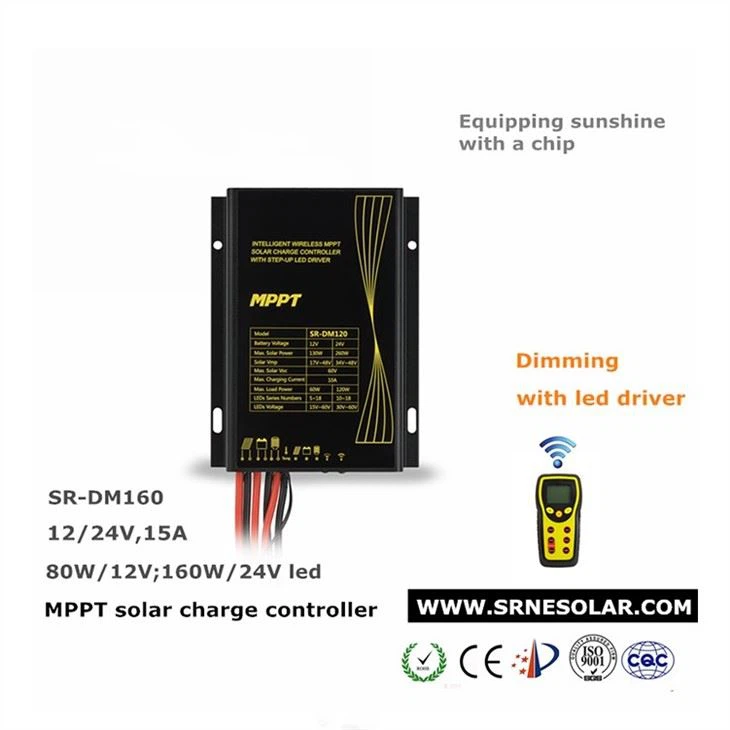

The controller range includes MPPT versions with multi-peak tracking, constant-current load control and charge regulation. Data logging, remote communication and sensing options vary by model. Confirm the charging method and supported battery programmes for the controller supplied.
Some models support lead-acid and specified lithium batteries, wireless settings and temperature monitoring. Listed options include a 1mA hibernation current and ten-stage sensing settings. Check these values and functions against the selected model datasheet.
• Single-string or two-string lithium battery versions are listed.
• A 1mA hibernation current and wireless parameter setting are listed options.
• Ten-stage sensing settings can configure lighting operation on supported models.
• Infrared and microwave sensing options are listed.
• Digital constant-current control is listed for the load output.
• Select a programme compatible with the specified battery.
• A continuously enabled load mode is listed for 24-hour operation.
• Confirm output voltage before connecting a router or camera.
• The general-load version lists IP67 protection.
• Lithium battery overcharge protection is listed.
AC/DC hybrid controller options include MPPT charging, tracking and load regulation. Confirm the source-switching arrangement, battery programme, operating modes and available records for the exact model.
Example Applications
Specify the 12V/24V hybrid controller as part of the complete solar street lighting system. Match it to the panel, battery and lamp, and confirm how any AC backup source is connected. The listed range includes different charging and display options, so the exact model datasheet should define the functions supplied.
Configuration Checks:
Charging Method: Confirm whether the selected controller uses MPPT or PWM charging. Match the charging programme to the battery chemistry and electrical limits.
AC/DC Arrangement: Agree the backup-power connection and source-switching behaviour. Continued operation depends on the complete system and available power.
Operating Settings: Define charging limits, load output and the nightly operating schedule. Record the approved settings for commissioning and maintenance.
Status Display: Confirm the display type and available readings for the selected model. Use its instructions when checking voltage, current and operating status.
Protection Functions: Review the listed overload, overcharge, short-circuit and reverse-polarity protections. Confirm their scope and the external protection required by the system design.
A solar controller must suit the battery and lighting load, not just the nominal system voltage. Prepare the panel rating, battery type, load power and nightly operating schedule before requesting a quotation. Namkoo can review these details with your required quantity and destination so the proposed controller can be checked against your project.
