Solar Pole Configuration References

Available Design Ranges

Parameter	Reference Options
Product	Namkoo Solar Lighting Pole Assembly
Material Options	Q235/Q345 steel; confirm any aluminium option
Height References	3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m

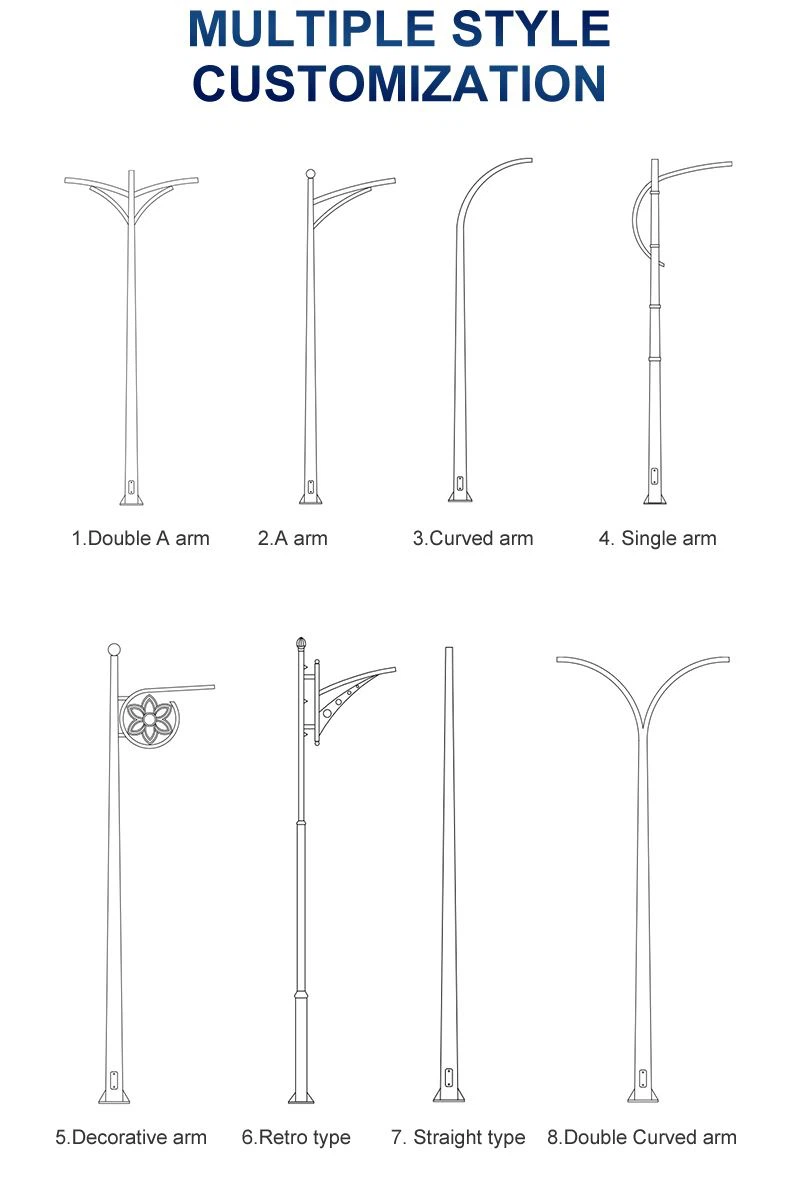

Section Profiles	Tapered, polygonal, cylindrical or octagonal
Wall Options	2.5mm, 2.75mm, 3mm, 3.25mm, 3.5mm, 3.75mm, 4mm, 4.5mm, 5mm, 6mm
Protective Finish	Galvanizing, powder coat or specified paint system
Panel Options	Mono- or polycrystalline silicon
Panel Range	50–300 W; size for the site
Storage Options	Lithium-ion or gel; confirm model
Capacity Range	40–200 Ah; confirm voltage and usable energy
LED Input Range	20–150 W; confirm selected luminaire
Rated LED Life	>50,000 hours
CCT Range	3000–6500 K; confirm option
Nightly Operation	10–12 hours and 2–3-day backup references; verify energy balance
Charging Reference	6–8 hours in suitable sunlight; varies
Control Options	Photocell, motion detection and timed dimming; confirm programme
Wind Reference	160 km/h: design-specific
Listed Temperature	-30°C to +60°C
IP Reference	IP65: confirm each supplied enclosure
Foundation Arrangement	Concrete foundation with designed anchors
Project Options	Specify height, section, finish, panel, battery and LED configuration
Required Documents	Request applicable model certificates
Warranty Terms	Confirm written coverage
Typical Sites	Roads, parking areas, parks, residential routes and industrial sites
Production Schedule	Confirm with quantity, approved drawings and component availability

Example Configuration Options

Parameter	Unit	Reference Value
Height	Meters	6m, 8m, 10m, 12m
Shaft Material	-	Galvanized Steel Q235/Q345
Wall Options	Millimeters	3mm, 4mm, 5mm
Section Profile	-	Conical, Octagonal
Protective Finish	-	Galvanizing with specified topcoat
Panel Rating	Watts	100W, 150W, 200W
Panel Technology	-	Monocrystalline Silicon
Storage Capacity	Ampere-hours (Ah)	100Ah, 150Ah, 200Ah
Battery Chemistry	-	Lithium-ion
LED Input	Watts	30W, 50W, 80W
LED Component Options	-	Philips, Cree or Bridgelux; confirm
Reference Output	Lumens	3600lm, 6000lm, 9600lm
CCT Options	Kelvin	4000K, 5000K, 6000K
Nightly Runtime	Hours per Night	10–12 h; confirm programme
Backup Reference	Days	2–3 days; verify sizing
Charging Reference	Hours	6–8 h in full sun; varies
Controller Option	-	MPPT; confirm selected controller
Enclosure Rating	-	IP65
Wind Reference	km/h	160; verify design
Listed Temperature	°C	-30°C to +60°C
Mounting	-	Baseplate and designed anchors
Foundation Reference	Meters	1.5–2.5 m; requires site design
Warranty Terms	—	Confirm pole and component coverage in writing
Documentation	-	Request model-specific records
Accessory Options	-	CCTV, Wi-Fi or sensors; confirm loads and supply
Packing	-	Agree protective wrapping and transport arrangement
Delivery Schedule	Days	Confirm with order
Minimum Order	Sets	Confirm quantity

Project Supply Checks

Pole Assembly Notes

Configuration Reference

1. Reference pole range: 6–12 m.

2. Confirm design loads.

3. Define fixture mounting points.

4. Plan installation.

5. Specify service-door and cable access.

6. Reference wall range: 3–5 mm.

7. Agree galvanized coating and any additional topcoat for the installation site.

8. Confirm production and dispatch dates.

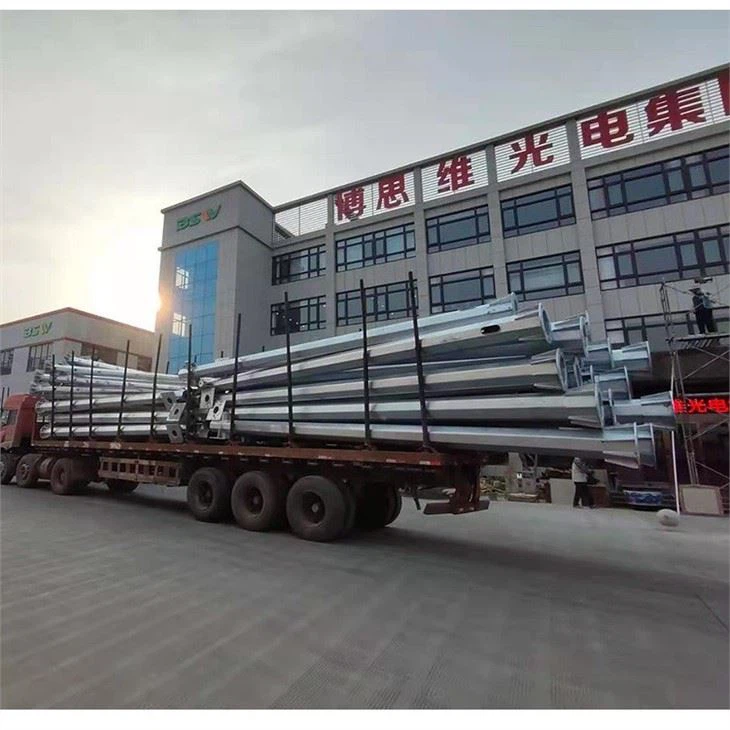

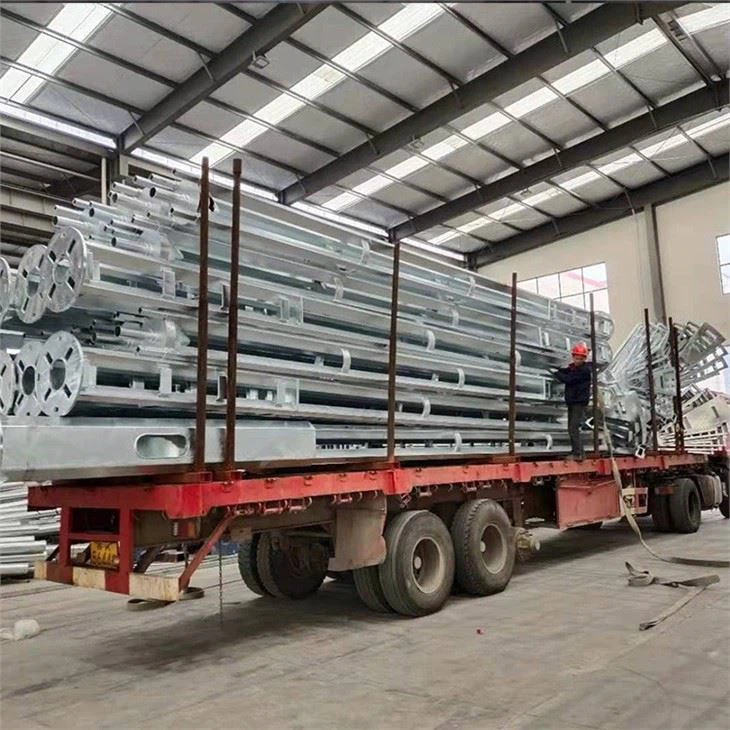

9. Agree packing and freight terms.

Reference Gallery

Project Configuration

Discuss these details with Namkoo when preparing your enquiry:

• Pole Drawing: Define height, shaft section, bracket position, baseplate and finish from the site design.
• Solar Components: Match panel output, usable battery energy and LED demand to the local solar resource and nightly operating programme.
• Accessory Loads: Identify cameras, sensors or communications equipment as separate options and include their weight, wind area and electrical demand.
• Installation Inputs: Provide ground conditions, foundation details, cable routes and maintenance access requirements for a coordinated review.

Documentation and Handover

Agree the product records and supply responsibilities before confirming the order:

• Inspection Records: Specify material, dimensional, weld and coating checks for the pole, plus relevant test records for supplied lighting equipment.
• Service Access: Plan cleaning, battery replacement and electrical inspection around the installed configuration and site conditions.
• Model Confirmation: Resolve the selected dimensions and component ratings in the final datasheet rather than combining every option in the range.
• Supply Terms: Confirm packing, delivery schedule, warranty scope and after-sales contact details in the written quotation.

Request a Lighting Pole Quote
