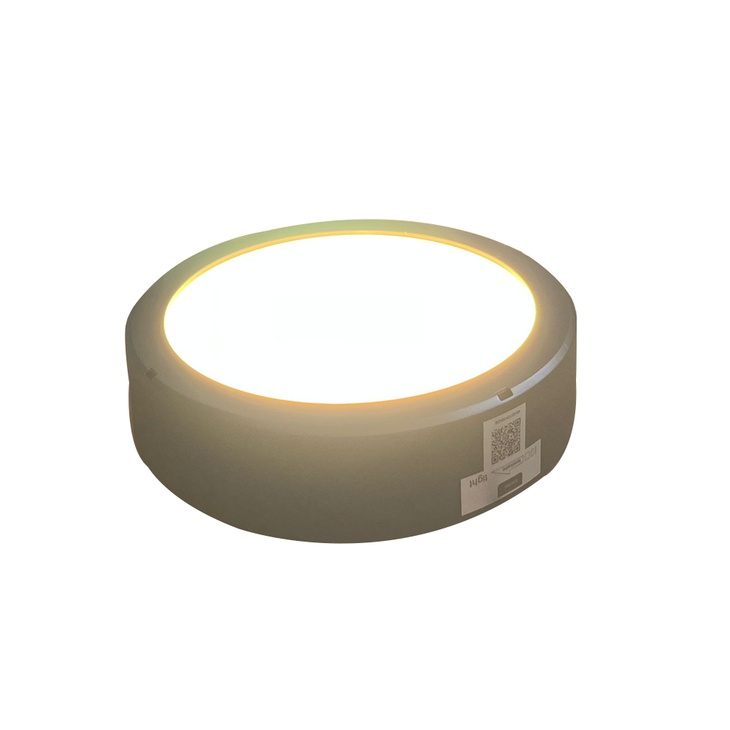

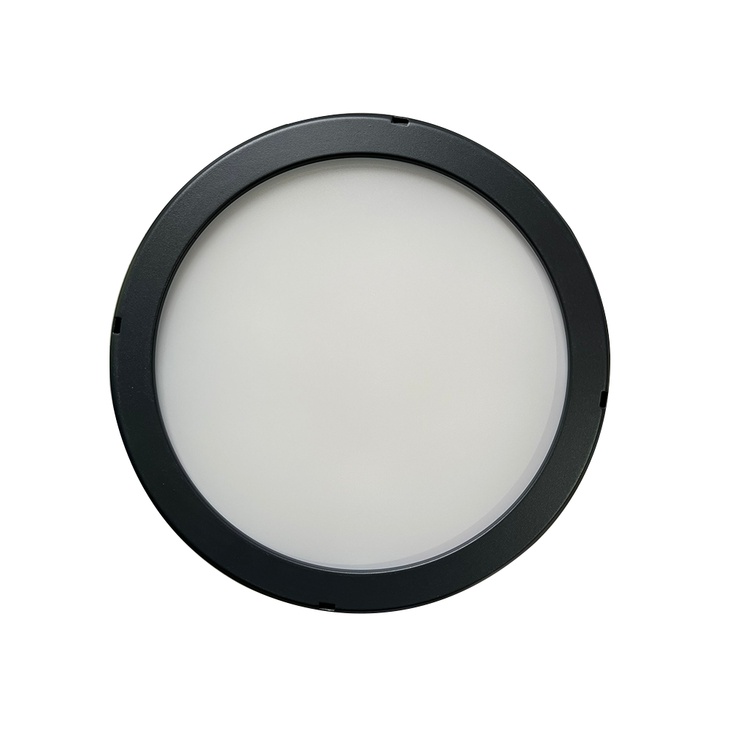

Slim round metal surface-mount light with frosted honeycomb diffuser for soft, anti-glare lighting; tool-free snap assembly; dust- and moisture-resistant sealed design for semi-outdoor use.
Slim round metal surface-mount light with frosted honeycomb diffuser for soft, anti-glare lighting; tool-free snap assembly; dust- and moisture-resistant sealed design for semi-outdoor use.
Suitable for bus stops, residential covered areas, commercial covered walkways, themed pop-up booths, and indoor corridors, entryways & bathrooms.
Surface-mounted design with no ceiling cutting; anti-glare honeycomb diffuser; rustproof metal housing; easy snap-off maintenance; slim neutral style for narrow covered spaces and versatile applications.
| Body | Die-Cast Aluminum and PC |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Model name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |
| busstop | 30 | 20-40 | ≥0.95 | 0.081 | 2 | 2.5 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | busstop | 370X640X380 | 6 | 1867 | 2.5 | 4667 | 3.4 | 6347 | 0.09 | 28 |
| 0.11 | 28 | |||||||||
| 0.071 | 28 | |||||||||
| 40GP Container 11.8*2.13*2.18 | busstop | 370X640X380 | 6 | 3867 | 2.5 | 9667 | 3.4 | 13147 | 0.09 | 58 |
| 0.11 | 58 | |||||||||
| 0.071 | 58 | |||||||||
| 40HQ Container 11.8*2.13*2.72 | busstop | 370X640X380 | 6 | 4533 | 2.5 | 11333 | 3.4 | 15413 | 0.09 | 68 |
| 0.11 | 68 | |||||||||
| 0.071 | 68 | |||||||||
| POLE HEIGHT | 2m |
| busstop | 20-40w |
Slim round metal surface-mount light with frosted honeycomb diffuser for soft, anti-glare lighting; tool-free snap assembly; dust- and moisture-resistant sealed design for semi-outdoor use.
Suitable for bus stops, residential covered areas, commercial covered walkways, themed pop-up booths, and indoor corridors, entryways & bathrooms.
Surface-mounted design with no ceiling cutting; anti-glare honeycomb diffuser; rustproof metal housing; easy snap-off maintenance; slim neutral style for narrow covered spaces and versatile applications.
