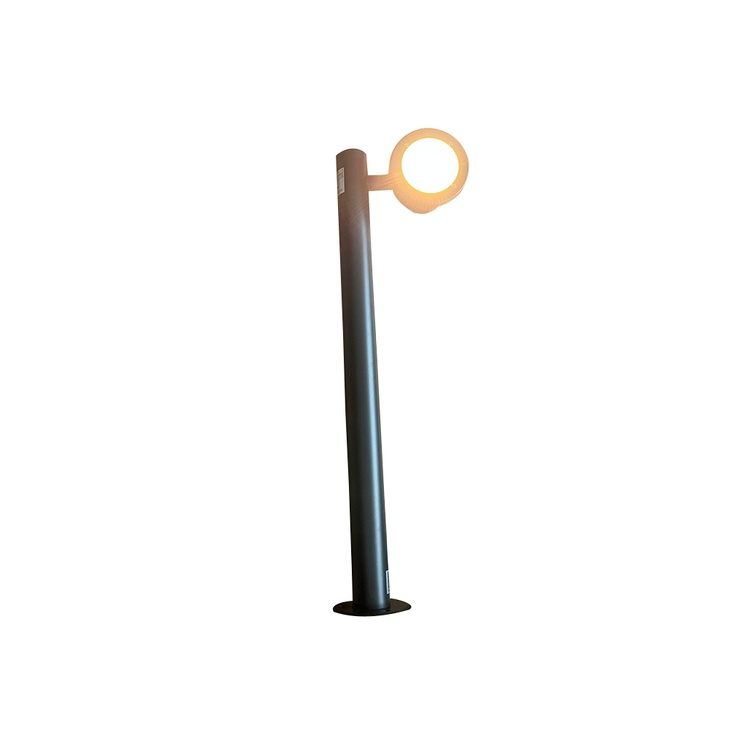

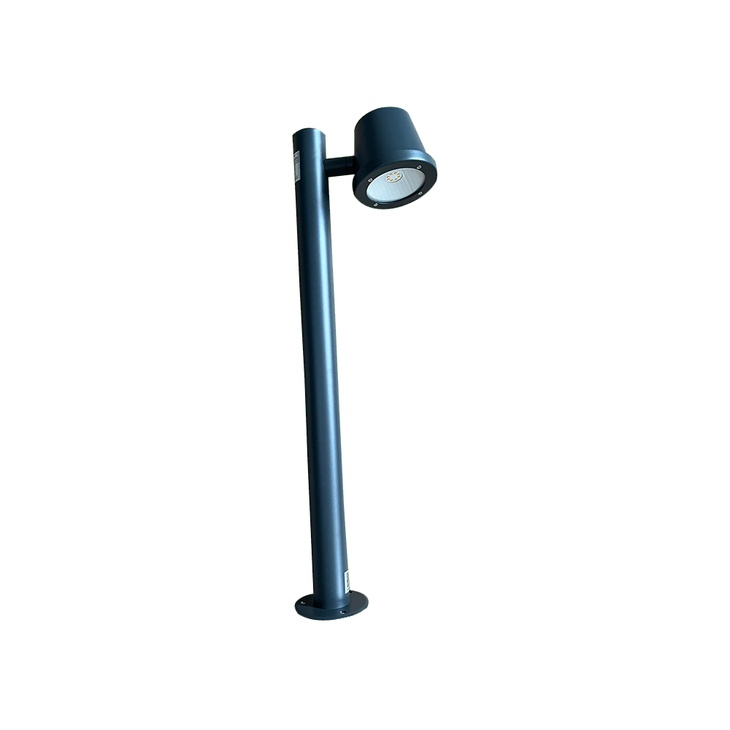

Aluminum body with a rotatable lamp head. Fully sealed waterproof structure with flange base mounting. Clean, modern appearance.
Aluminum body with a rotatable lamp head. Fully sealed waterproof structure with flange base mounting. Clean, modern appearance.
Suitable for Villa gardens, residential walkways, hotel courtyards, city parks, campus landscapes, and other outdoor lighting projects.
Multi-angle directional lighting, high efficiency and low energy consumption. Excellent heat dissipation, long lifespan, low maintenance. Weatherproof, easy to install, and anti-glare soft lighting.
Bollard luminaires for paths and pedestrian areas. Ask about dimensions, finish, light distribution and fixing details.
The online catalogue for this series is not yet published. Ask for the available documentation for the model you need.
Tell us where the luminaires will be installed, the mounting height and the quantity. Include the lighting requirements and target delivery date.
| Body | Die-Cast Aluminum and glass |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Model name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | bollard | 570X535X870 | 6 | 634 | 2.5 | 1585 | 3.4 | 2155 | 0.265 | 28 |
| 0.11 | 28 | |||||||||
| 0.071 | 28 | |||||||||
| 40GP Container 11.8*2.13*2.18 | bollard | 570X535X870 | 6 | 1313 | 2.5 | 3283 | 3.4 | 4465 | 0.265 | 58 |
| 0.11 | 58 | |||||||||
| 0.071 | 58 | |||||||||
| 40HQ Container 11.8*2.13*2.72 | bollard | 570X535X870 | 6 | 1540 | 2.5 | 3849 | 3.4 | 5235 | 0.265 | 68 |
| 0.11 | 68 | |||||||||
| 0.071 | 68 | |||||||||
| POLE HEIGHT | 0.8米 |
| bollard | 8-20W |
Aluminum body with a rotatable lamp head. Fully sealed waterproof structure with flange base mounting. Clean, modern appearance.
Suitable for Villa gardens, residential walkways, hotel courtyards, city parks, campus landscapes, and other outdoor lighting projects.
Multi-angle directional lighting, high efficiency and low energy consumption. Excellent heat dissipation, long lifespan, low maintenance. Weatherproof, easy to install, and anti-glare soft lighting.
Bollard luminaires for paths and pedestrian areas. Ask about dimensions, finish, light distribution and fixing details.
The online catalogue for this series is not yet published. Ask for the available documentation for the model you need.
Tell us where the luminaires will be installed, the mounting height and the quantity. Include the lighting requirements and target delivery date.
