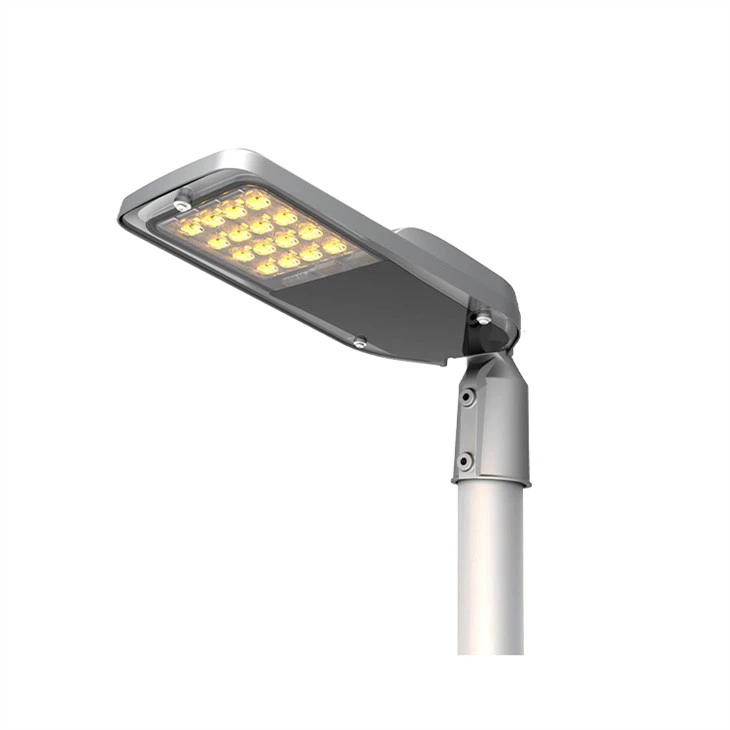

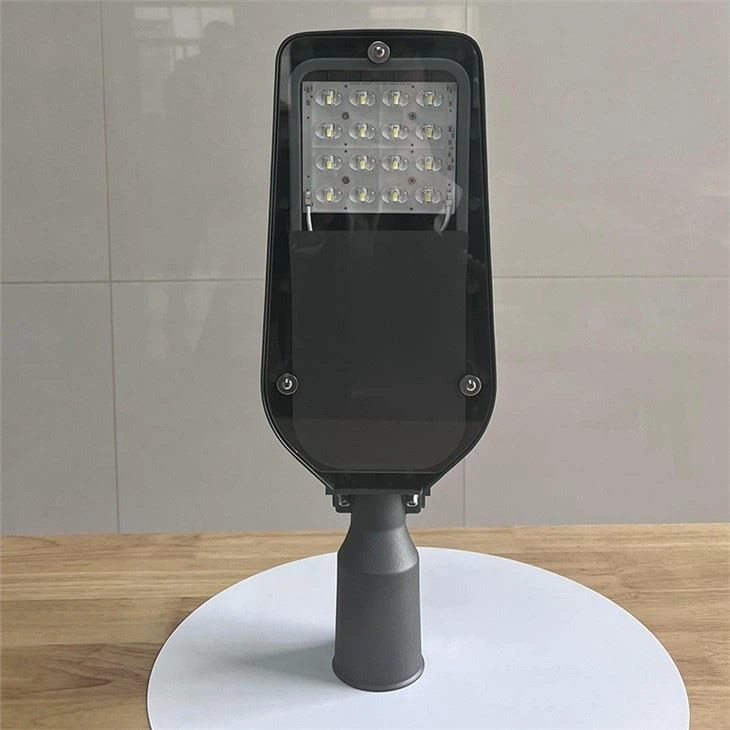

AC Street Lamp Overview

Specify the Namkoo AC street lamp for a lighting layout with a suitable electrical supply. The listed efficacy is 120 lm/W. Review the selected wattage, optical distribution and mounting arrangement for roads, parking areas or public spaces.

Selection Details

1. Listed Efficacy: The reference specification states 120 lm/W. Confirm the complete luminaire data for the selected model and operating conditions.

2. Service-Life Data: A 50,000-hour life figure is listed. Request the test basis and operating conditions; rated life is distinct from warranty coverage.

3. Energy Comparison: Compare input power and operating hours with the existing installation. Savings depend on the replacement design and control schedule.

4. Configuration Options: Agree wattage, colour temperature and optics. Confirm whether the selected driver supports the dimming or communication functions required.

5. Outdoor Specification: Review housing protection, input limits and required compliance documents for the exact model. Match them to the installation environment.

Typical Uses

• Road Lighting: Select optics and mounting from the road layout.
• Parking Areas: Review coverage, glare and mounting positions.
• Public Spaces: Coordinate light distribution with pedestrian areas.

Optical Distribution

Mounting Accessories

Installation Information

Application Examples



AC Lamp Data

Listed Models

Model	Input Power	Light Output	Efficacy	CCT Options	CRI	Size (mm)
SG1-40W	40W	5200LM	130lm/W	2000K, 2700K, 3000K, 4000K, 5700K	≥70Ra	Confirm size
SG1-60W	60W	7800LM	130lm/W	2000K, 2700K, 3000K, 4000K, 5700K	≥70Ra	Confirm size

Construction and Options

• Housing Material: ADC12 Aluminum Die-casting
• Glass: Tempered glass; verify IK08
• IP Rating: IP66
• Control Interfaces: 0-10V Dimming, DALI, ZHAGA Sockets
• Rated Life: 50,000 Hours
• Operating Temperature: -40°C to 50°C
• Documents: Confirm scope

Optical and Model Checks

Review the optical file and mounting layout for the chosen model. The page title lists 120 lm/W while the SG1 table lists 130 lm/W; confirm the supplied model and its test data. Check control interfaces, protection ratings and applicable documents before ordering.



---

Parameter	Listed Value
Input Power	40W, 60W
Light Output	5200LM (40W), 7800LM (60W)
Efficacy	130lm/W
CCT	2000K, 2700K, 3000K, 4000K, 5700K
CRI	≥70Ra
Housing Material	ADC12 Aluminum Die-casting
Glass	Tempered glass; verify IK08
IP Rating	IP66
Rated Life	50,000 Hours

Installation Planning

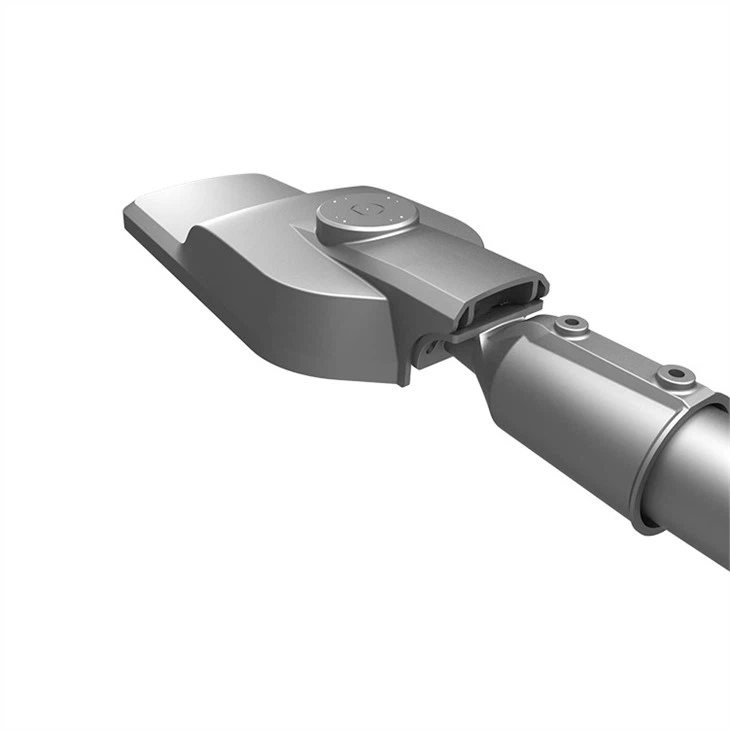

• Mounting Details: Confirm the bracket, spigot dimensions and included fixings. Use the selected model instructions when planning installation.
• Service Access: Allow access for inspection and cleaning. Review replacement parts and maintenance requirements for the installation.

Lighting Controls

• Monitoring Interface: Confirm the controller and communication equipment required for remote monitoring. These functions depend on the selected configuration.
• Dimming Interface: The listed options include 0–10V and DALI. Verify the driver interface and compatibility with the project controls.

Operating Energy

• Power and Schedule: Compare the selected input power and operating hours with the existing lighting. Use the project layout when estimating energy use.
• Equipment Life: Review the rated-life conditions, service access and component availability when comparing long-term operating requirements.

Product Documentation

• Test Information: Request the test reports relevant to the installation environment and selected model. Agree any project-specific inspection requirements.
• Applicable Documents: Verify the required declarations and approvals for the actual product and destination.

---

Order Preparation

Send Namkoo the road layout, mounting height, power supply and required quantity. Confirm the model, optics, control interface and supporting documents before ordering. The final quotation should identify the lamp configuration, accessories and written warranty terms.
