LED High Mast lamp suitable for complex area, need high lumen area , i,e: Publis Squar, Airport area etc.
LED High Mast lamp suitable for complex area, need high lumen area , i,e: Publis Squar, Airport area etc.
Helios is flexible to install and adjust light, save energy to submit good light distribution.
HELIOS Luminaries are certified by the highest certifications and quality performance
Lens variant types provides uniform illumination with no glare.
Our Lens solutions are suitable to carry back light control to minimize light spill form back of the luminaire
HELIOS Luminaries equipped with knife connector when opening the luminarie electrical disconnects
IK09 tempered glass,Modular lens is available for various light types to meet the lighting requirements of different roads
Through the special fixed disk design,the LED module can rotate at -175 ~+175 in the horizontal circumferential direction
Four bolt mounting suitable for φ60mm side entry ,-5/+5 Angle adjustable
Tool-free opening with stop handle for easy installation, future-proof updates for all components, easy replacment and maintenance in sustainble manner.
Sectional heat dissipation cords, structured for easy drainge of rain and waste, free air flow to improve the performance of the lamp and support self cle aning,
HEL IOS Luminaries die-cast control system ready by for 7-pin NEMA or Zhaga sockets Optional per customer request
Lamp body produced from die- casted aluminum structured and designed for easy self cleaning with spcial cooling fins to allow excellent heat dispotion

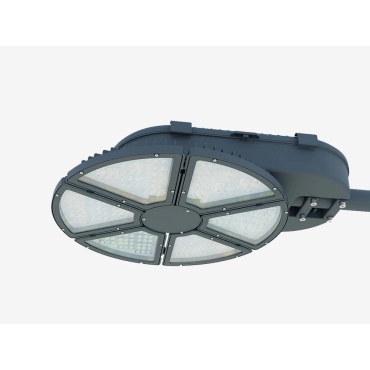

Circular high-mast and large-area LED luminaires with adjustable optical modules. IP66 and IK09 are shown in the supplied catalogue.
Applications: Highways, airports, urban roads, commercial areas and car parks.
| Model | Power (W) | LED Quantity (pcs) 3535/5050 |
|---|---|---|
| HELIOS-S | Up to 660 | 144 / 216 |
| HELIOS-L | Up to 1000 | 240 / 360 |
LED High Mast lamp suitable for complex area, need high lumen area , i,e: Publis Squar, Airport area etc.
Helios is flexible to install and adjust light, save energy to submit good light distribution.
HELIOS Luminaries are certified by the highest certifications and quality performance
Lens variant types provides uniform illumination with no glare.
Our Lens solutions are suitable to carry back light control to minimize light spill form back of the luminaire
HELIOS Luminaries equipped with knife connector when opening the luminarie electrical disconnects
IK09 tempered glass,Modular lens is available for various light types to meet the lighting requirements of different roads
Through the special fixed disk design,the LED module can rotate at -175 ~+175 in the horizontal circumferential direction
Four bolt mounting suitable for φ60mm side entry ,-5/+5 Angle adjustable
Tool-free opening with stop handle for easy installation, future-proof updates for all components, easy replacment and maintenance in sustainble manner.
Sectional heat dissipation cords, structured for easy drainge of rain and waste, free air flow to improve the performance of the lamp and support self cle aning,
HEL IOS Luminaries die-cast control system ready by for 7-pin NEMA or Zhaga sockets Optional per customer request
Lamp body produced from die- casted aluminum structured and designed for easy self cleaning with spcial cooling fins to allow excellent heat dispotion
Circular high-mast and large-area LED luminaires with adjustable optical modules. IP66 and IK09 are shown in the supplied catalogue.
Applications: Highways, airports, urban roads, commercial areas and car parks.
DALI, 0–10V, AstroDIM, StepDIM; photocell, NEMA socket and Zhaga. Ø60 mm side-entry mounting, −5° / +5° aiming adjustment and −175° / +175° optical-module rotation, subject to the selected configuration.
