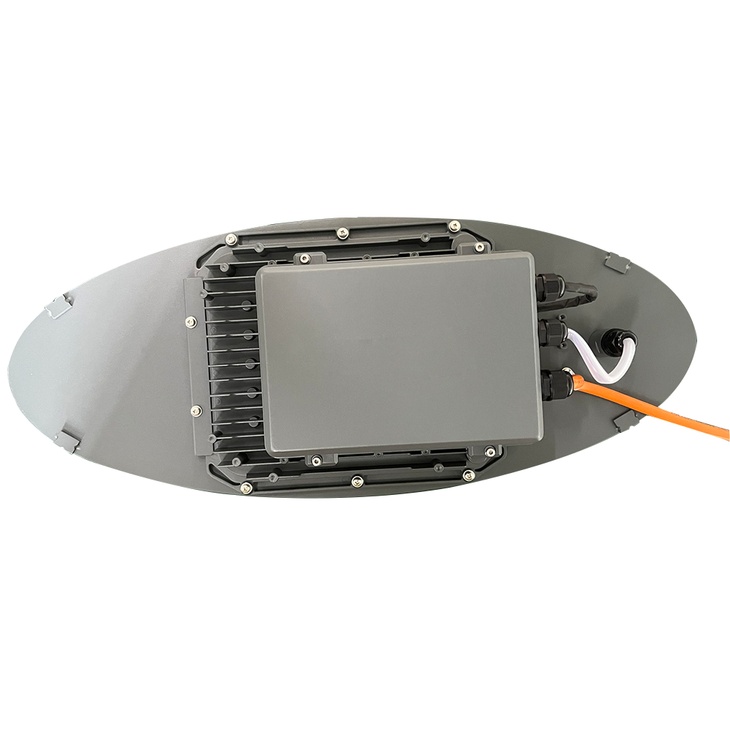

This lens adopts a die-cast aluminum alloy body and a modular optical system, ensuring a robust and durable structure with precise optical control. Its IP66 and IK09 protection ratings, along with a tempered glass lens, provide excellent durability and weather resistance.
This lens adopts a die-cast aluminum alloy body and a modular optical system, ensuring a robust and durable structure with precise optical control. Its IP66 and IK09 protection ratings, along with a tempered glass lens, provide excellent durability and weather resistance.
Suitable for various road types, including highways, urban streets, and residential areas. It is also ideal for parking lots, bicycle lanes, and pedestrian zones.
Multiple optical distribution options (Type IV) enable customized lighting, reduce glare, and improve uniformity. Optional smart control and high surge protection further enhance energy efficiency and long-term reliability.
| Body | Die-Cast Aluminum and glass |
| Optical System | Type I-V or Customized special |
| Input | Voltage: 200v-240VAC,frequency: 50/60Hz |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Surge Protection | 10kV, 25kV,10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC-62471 |
| Model name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |
| Mantis-D | 16 | 20-50 | ≥0.95 | 0.23 | 6 | 14.5 |
| 32 | 35-75 | |||||
| 48 | 50-100 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | Mantis-S | 530X530X660 | 1 | 147 | 11 | 1621 | 13 | 1916 | 0.19 | 28 |
| 0.16 | 28 | |||||||||
| 0 | 0 | 0.071 | 28 | |||||||
| 40GP Container 11.8*2.13*2.18 | Mantis-S | 530X530X660 | 1 | 305 | 11 | 3358 | 13 | 3968 | 0.19 | 58 |
| 0.16 | 58 | |||||||||
| 0 | 0 | 0.071 | 58 | |||||||
| 40HQ Container 11.8*2.13*2.72 | Mantis-S | 530X530X660 | 1 | 358 | 11 | 3937 | 13 | 4653 | 0.19 | 68 |
| 0.16 | 68 | |||||||||
| 0 | 0 | 0.071 | 68 | |||||||
| POLE HEIGHT | 4 | 6 |
| Mantis-S | 20-50 | 50-100 |
This lens adopts a die-cast aluminum alloy body and a modular optical system, ensuring a robust and durable structure with precise optical control. Its IP66 and IK09 protection ratings, along with a tempered glass lens, provide excellent durability and weather resistance.
Suitable for various road types, including highways, urban streets, and residential areas. It is also ideal for parking lots, bicycle lanes, and pedestrian zones.
Multiple optical distribution options (Type IV) enable customized lighting, reduce glare, and improve uniformity. Optional smart control and high surge protection further enhance energy efficiency and long-term reliability.
