The Namkoo all-in-two solar street light separates the solar panel from the lighting unit, allowing the panel position to suit available sunlight. Review the site, mounting arrangement and nightly lighting demand to choose the panel and battery configuration.
All-in-Two Arrangement:

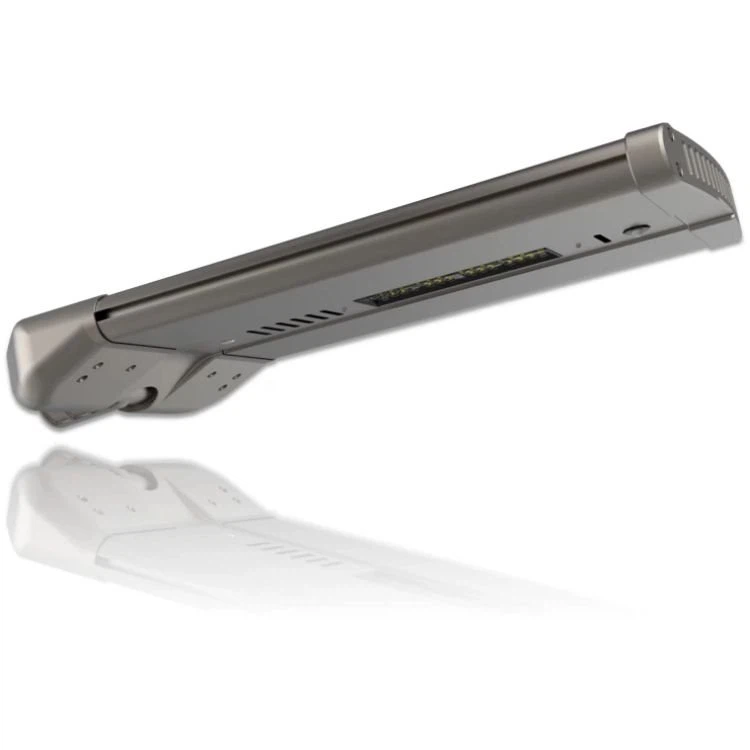

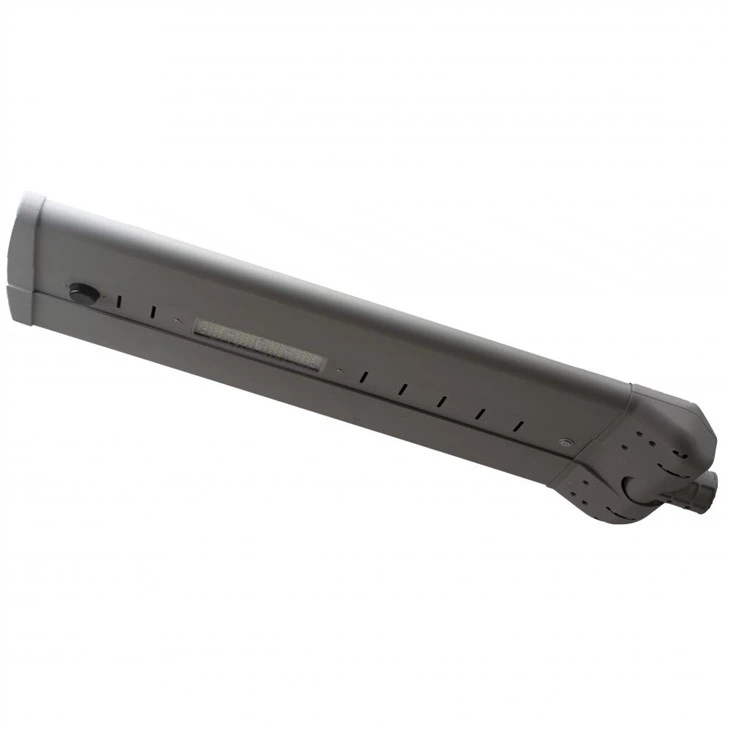

The Namkoo all-in-two solar street light separates the solar panel from the combined lighting assembly. Coordinate panel exposure and lamp placement for roads, parking areas and other outdoor spaces. Review the power components and operating programme before selecting a configuration.
Configuration Points:
Panel Performance:
Battery Storage:
Light Colour and Optics:
Outdoor Housing:
Energy Planning:
Mounting and Access:
Potential Locations:

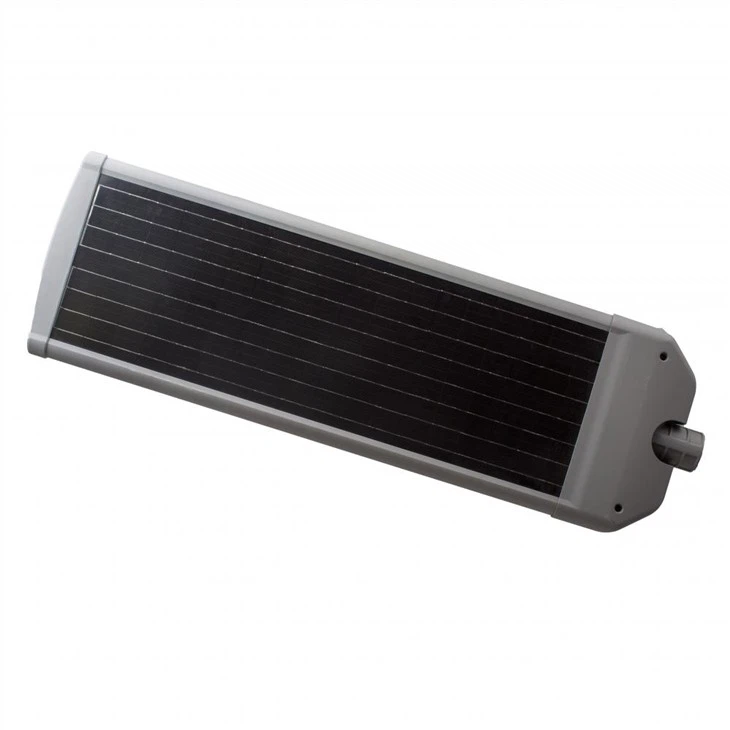

Position the separate panel to avoid shading while maintaining the required lamp direction. Confirm panel dimensions, output and mounting details for the selected arrangement.
Storage must cover the planned lighting programme during periods of limited charging. Agree the backup target and check it against seasonal sunlight and usable battery energy.
Use the luminaire data to assess coverage and glare at the intended height. Confirm whether 6000K or another available colour temperature is required for the project.
Review the environmental specification for the lamp, panel connections and battery assembly. An IP rating alone does not establish resistance to every outdoor condition.
Estimate operating energy from the actual power settings and lighting hours. Include cleaning, inspection and component replacement when evaluating overall project cost.
Agree access and maintenance procedures before installation. The quotation should identify mounts, electrical accessories and the technical-support scope supplied by Namkoo.
Send the site layout, location, pole height and nightly operating requirements. Confirm the complete all-in-two specification and supply boundaries before ordering.
| Solar Lamp Reference Data | Configuration Summary |
|---|
| Listed Voltage (V) | DC 3.2V/12.8V |
| Panel Rating (W) | 50W, 80W |
| Battery Capacity (Ah) | 15AH, 25AH, 34AH |
| Listed Temperature | -10℃ ~70℃ |
| CCT Range (K) | 3000K-6500K |
| LED Efficacy | 180lm/W |
| IP Reference | IP65 |
| Rated Life | >50000 Hours |
| Humidity Range | 10~90% |
| Mounting Height | 6~8 M |
| Dimensions | 881x397x100mm |
The reference tables describe integrated lamp models. Confirm which specification applies to the all-in-two arrangement supplied. Verify battery charging limits, IP rating and backup duration for that exact configuration.
| Integrated Lamp Model References | |||
| Model | -DC-IB-02 | DC-IB-03 | DC-IB-04 |
| Listed Voltage (V) | DC 3.2V/12.8V | DC 3.2V/12.8V | DC 3.2V/12.8V |
| Panel Rating (W) | 50W | 50W | 80W |
| Battery Capacity (Ah) | 15AH | 25AH | 34AH |
| Listed Temperature | -10℃ ~70℃ | ||
| Colour Rendering | ≥Ra70 | ||
| Humidity Range | 10~90% | ||
| LED Efficacy | 180lm/W | ||
| IP Reference | IP65 | ||
| CCT Range | 3000K-6500K | ||
| Rated Life | ＞50000H | ||
| Mounting Height | 6~8M | ||
| Dimensions | 881x397x100mm | ||
• Confirm the selected housing and mounting design.
• Listed LED efficacy: 180 lm/W; check the model data.
• The listed housing is die-cast aluminium; confirm the grade and finish.
• Agree the operating programme.
• Verify backup conditions.
• Check outdoor protection and servicing requirements.
• IP65 and IP67 references appear on this page. Confirm the actual model rating and controller functions.
• A 5–8-year battery-life figure is listed; verify its conditions and written warranty terms.
1. Housing
The reference specifies 104 die-cast aluminium with drainage and heat-dissipation features. Check the supplied model drawing and protection documentation; do not treat an IP rating as a corrosion-resistance guarantee.
2. Sensing Controller
A listed microwave programme changes between 100% output during detection and 30% afterward. Confirm the actual settings, timing and operating conditions for the controller supplied.
3. LED and Optical Assembly
Review the LED module, PC lens and heat-dissipation arrangement. Use the selected optical file to assess coverage at the project mounting height.
Housing Specification:
Sensing Programme:
LED and Optics:
Energy Balance:
Installation Access:
Q1: Can an all-in-two sample be discussed?
A: Confirm the required configuration, sample availability and cost with Namkoo.
Q2: When can production be scheduled?
A: Request a schedule for the agreed model and quantity.
Q3: What order quantity is required?
A: Confirm the model-specific minimum.
Q4: How is system voltage confirmed?
A: Match the selected panel, battery, controller and lamp. Use the actual electrical specification for the assembly.
Q5: How are components packed and shipped?
A: Agree panel and lamp packaging, route and transport method. Delivery timing depends on the shipment.
Q6: How do I prepare an order?
A: Send the layout and lighting schedule, then review the proposed specification and quotation.
Confirm the equipment list, drawings and written order terms before production is arranged.
For an all-in-two installation, consider panel orientation separately from the light distribution. Send your mounting height, road width, site location and lighting schedule so panel placement and battery sizing can be discussed. Namkoo can review these details with the required quantity and destination. Confirm the selected model, mounting components and agreed operating conditions before placing your order.
