LED mould light distribution lens, diffuser with super white gempered glass. Surface anti-ageing electrostatic spray processing. Super resistance to corrosion.
LED mould light distribution lens, diffuser with super white gempered glass.
Surface anti-ageing electrostatic spray processing. Super resistance to corrosion.

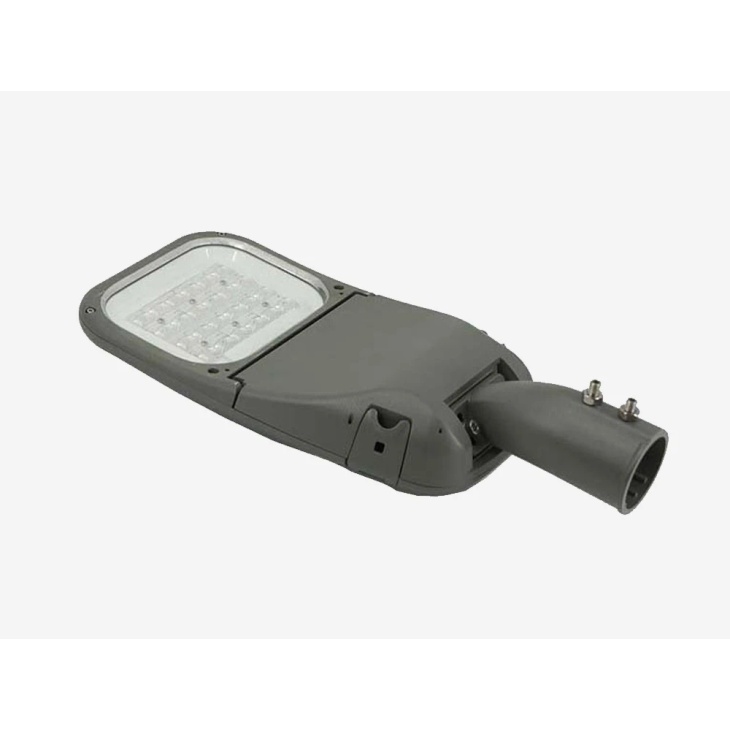

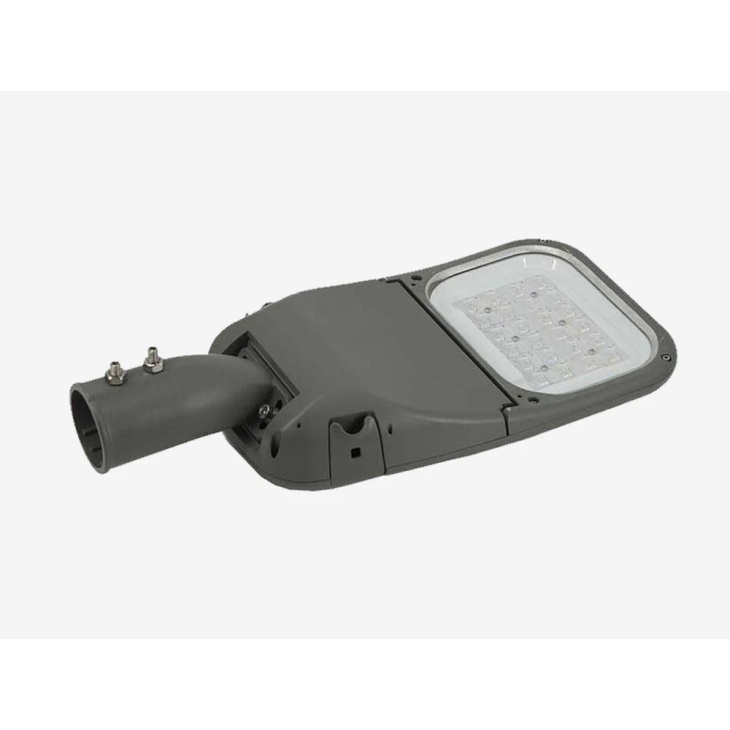

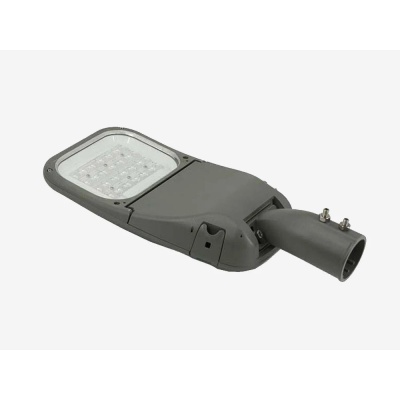

This lens adopts a die-cast aluminum alloy body and a modular optical system, ensuring a robust and durable structure with precise optical control. Its IP66 and IK09 protection ratings, along with a tempered glass lens, provide excellent durability and weather resistance.
Suitable for various road types, including highways, urban streets, and residential areas. It is also ideal for parking lots, bicycle lanes, and pedestrian zones.
Multiple optical distribution options (Type IV) enable customized lighting, reduce glare, and improve uniformity. Optional smart control and high surge protection further enhance energy efficiency and long-term reliability.
Smooth flowing lines create a balanced roadway profile. IP66, IK09, IK10
Applications: Urban roads, residential streets, car parks and industrial access roads.
| Product Name | LEDs | Power | Wattage | V/HZ | Carton size(mm) |
|---|---|---|---|---|---|
| Pisces-1 | 8 | 10W | 2200K-6500K | 90-305V/50-60HZ | 610X300X125 |
| 20W | |||||
| 16 | 30W | ||||
| 40W | |||||
| 24 | 30W | ||||
| 60W |
| Body | Die-Cast Aluminum. |
|---|---|
| Optical system | LED mould light distribution lens, diffuser with super white gempered glass. |
| Electric | Quick on/off connector when be open. |
| Finishing | Surface anti-ageing electrostatic spray processing. Super resistance to corrosion. |
| Installation height | 4M-8M |
| Lifetime (Hrs) | > 100000 hrs |
| Ambient Environment | -40℃to+55℃ |
| Installation pipe | Ø48mm / Ø60mm / Ø76mm |
| Power Factor | >0.95 |
| Class | I/II |
| Body | Die-Cast Aluminum |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Electric | Quick on/off connector |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09/IK10 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC 62471 |
| Voltage,V200-240 | Frequency,Hz 50-60 | |||||
| LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) | |
| PISCES1 | 8 | 8-30 | ≥0.92 | 0.11 | 4 | 5 |
| 16 | 20-50 | 6-8 | ||||
| 24 | 40-60 | |||||
| PISCES2 | 16 | 30-40 | ≥0.92 | 0.14 | 4 | 6 |
| 32 | 40-100 | 6-8 | ||||
| 48 | 70-150 | |||||
| PISCES3 | 48 | 100-150 | ≥0.92 | 0.22 | 8-12 | 8 |
| 64 | 150-180 | |||||
| 80 | 180-250 | 10-16 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weight /kg | Gross weight /kg | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||
| 20GP Container 5.85*3.23*2.15 | PISCES1 | 560X270X160 | 1 | 1157 | 5 | 5785 | 5.5 | 6364 |
| PISCES2 | 675X285X170 | 1 | 856 | 6 | 5136 | 6.5 | 5564 | |
| PISCES3 | 790X360X170 | 1 | 579 | 8 | 4632 | 8.5 | 4922 | |
| 40GP Container 11.8*2.13*2.18 | PISCES1 | 560X270X160 | 1 | 2397 | 5 | 11985 | 5.5 | 13184 |
| PISCES2 | 675X285X170 | 1 | 1773 | 6 | 10638 | 6.5 | 11525 | |
| PISCES3 | 790X360X170 | 1 | 1200 | 8 | 9600 | 8.5 | 10200 | |
| 40HQ Container 11.8*2.13*2.72 | PISCES1 | 560X270X160 | 1 | 2811 | 5 | 14055 | 5.5 | 15461 |
| PISCES2 | 675X285X170 | 1 | 2079 | 6 | 12474 | 6.5 | 13514 | |
| PISCES3 | 790X360X170 | 1 | 1406 | 8 | 11248 | 8.5 | 11951 | |
| POLE HEIGHT | 4M | 6-8M | 8-12M | 10-16M |
| PISCES1 | 8-30W | 20-60W | ||
| PISCES2 | 30-40W | 40-150W | ||
| PISCES3 | 100-180W | 180-250W |
| Model | Power (W) | LED Quantity (pcs) 3535/5050 |
|---|---|---|
| PISCES 1 | 8–60 | 8 / 12 / 24 |
| PISCES 2 | 30–150 | 16 / 32 / 48 |
| PISCES 3 | 100–280 | 48 / 64 / 80 |
Surface anti-ageing electrostatic spray processing. Super resistance to corrosion.
Quick on/off connector when be open.
Surface anti-ageing electrostatic spray processing. Super resistance to corrosion. Namkoo can review your PISCES 1 enquiry.
