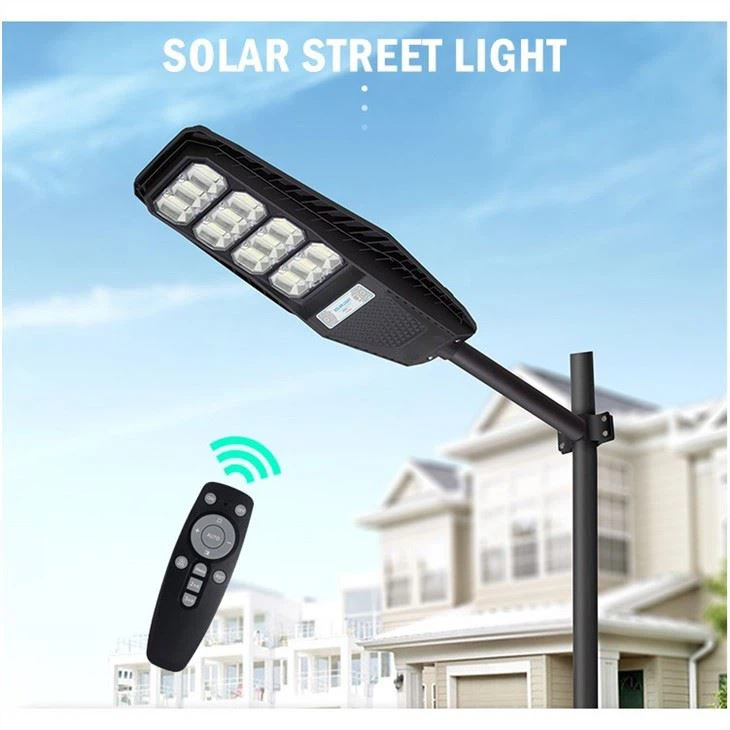

This ABS all-in-one solar LED street lamp integrates the panel with the lamp body. Select the operating mode and mounting position around your site and lighting schedule. Request the specification and certification documents for the exact model being quoted.
The Namkoo integrated ABS solar lamp brings the panel, battery, controller and LED light into a compact assembly. Position it where the panel receives suitable sunlight and the lamp can cover the intended outdoor area.
Review this configuration for paths, courtyards and other outdoor spaces. The installation should account for shading, mounting height and nightly operating hours. Confirm the selected model ratings and sensing programme before specifying the quantity.
An all-in-one assembly reduces the number of separate components mounted at the site. Check the following items against the proposed installation:
Solar Supply: The panel charges the specified lithium battery during suitable sunlight. Match generation and usable storage to the operating schedule.
LED Lighting: Compare output and beam coverage at the intended mounting height. The selected power setting affects nightly energy demand.
Integrated Housing: The panel, controller, battery and lamp share one assembly. Review mounting and service access for the chosen position.
Movement Sensing: Confirm the sensor mode and brightness programme for the selected model.
ABS Construction: Check the housing protection rating and operating limits against the outdoor environment.
| Listed Model | 100W | 200W | 300W |
|---|---|---|---|
| Housing | ABS | ABS | ABS |
| Lens | Polycarbonate | Polycarbonate | Polycarbonate |
| Dimensions | 530 × 270 × 70mm | 645 × 300 × 70mm | 750 × 300 × 70mm |
| LED Count (pcs) | 360 | 480 | 600 |
| Battery (mAh) | 12000 | 18000 | 24000 |
| Solar Panel | 4V/10W (420*210MM) | 4V/15W (535*210MM) | 4V/18W (635*210MM) |
| Listed Autonomy | 5 Days | 5 Days | 5 Days |
| Discharge Current | 2.5A | 3.5A | 4.5A |
| Light Output | 1081 | 1573 | 2136 |
The table lists 100W, 200W and 300W model labels alongside their panel, battery and output figures. Confirm the actual LED operating power and test conditions for the chosen model. The five-day autonomy figure depends on the charging conditions and operating mode; it is not a guarantee of full-output operation.
The ABS housing combines the solar and lighting components in one unit. Check its dimensions, mounting interface and service access against the installation location.
Mounting: Confirm the supplied mount and attachment dimensions. A compact assembly still needs a suitable support and installation method.

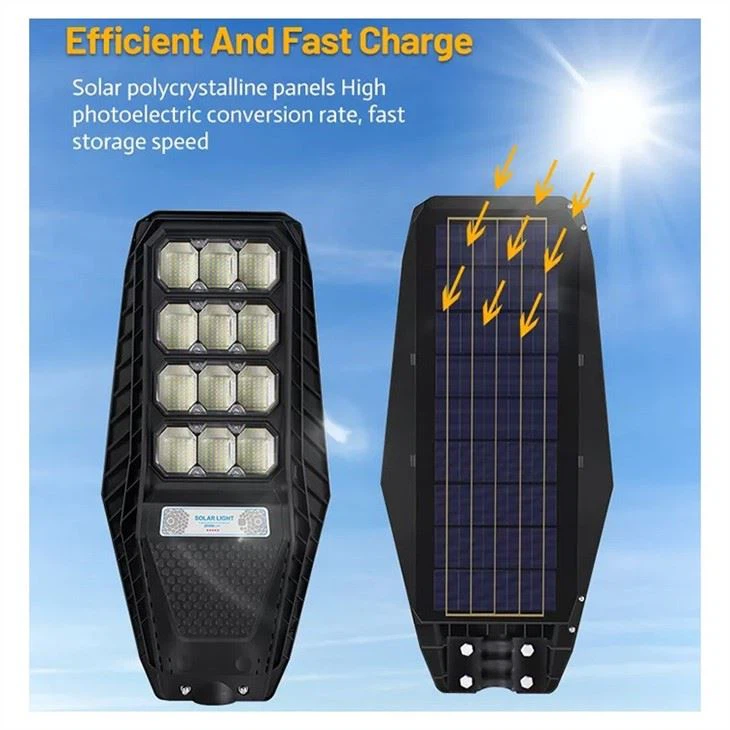

Charging: Match the panel and charging programme to the battery. Compare charging performance using test data for the same conditions.
Operating Modes: Listed modes include radar operation, constant lighting and a timed change from constant lighting to radar operation.
Energy Management: Agree the brightness schedule and battery management settings. Operating duration varies with available sunlight and energy use.
Power and Storage
Solar energy is stored in the integrated battery for lighting operation. Review the selected panel rating, battery capacity and nightly demand together. Ask for the model-specific electrical data and any documents required by the project.
Installation Fit
Measure the mounting position and allow suitable exposure for the panel. Check nearby shading and the aiming direction before selecting the fixture location. Confirm the product dimensions and attachment details on the drawing.
Operating Considerations
4.1 Mounting: The panel is incorporated in the lamp assembly. Confirm the mounting parts and support required for the installation.
4.2 Charging: Compare panel power, charging voltage and measured energy transfer. A higher current at a lower voltage alone does not demonstrate higher charging efficiency. Confirm the data for the selected model.
4.3 Modes: Review radar, constant-light and combined programmes. Choose settings that match the required lighting hours and available energy.
4.4 Energy balance: Set the lighting schedule to suit seasonal sunlight and usable battery storage. Confirm how the controller adjusts output and protects the battery during low-charge periods.

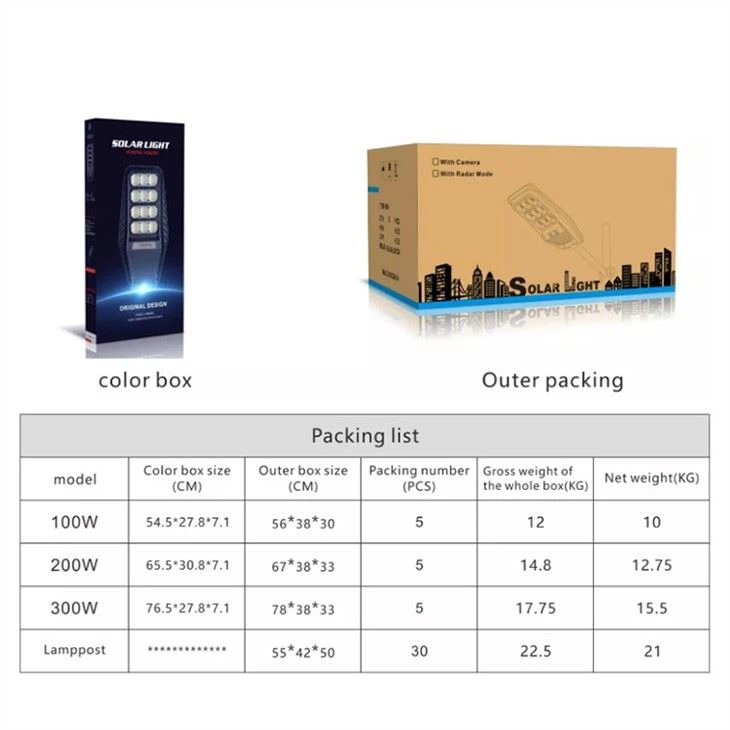

Agree the packing method, included mounts and product instructions for the selected model. Check the package dimensions and handling requirements before shipment.

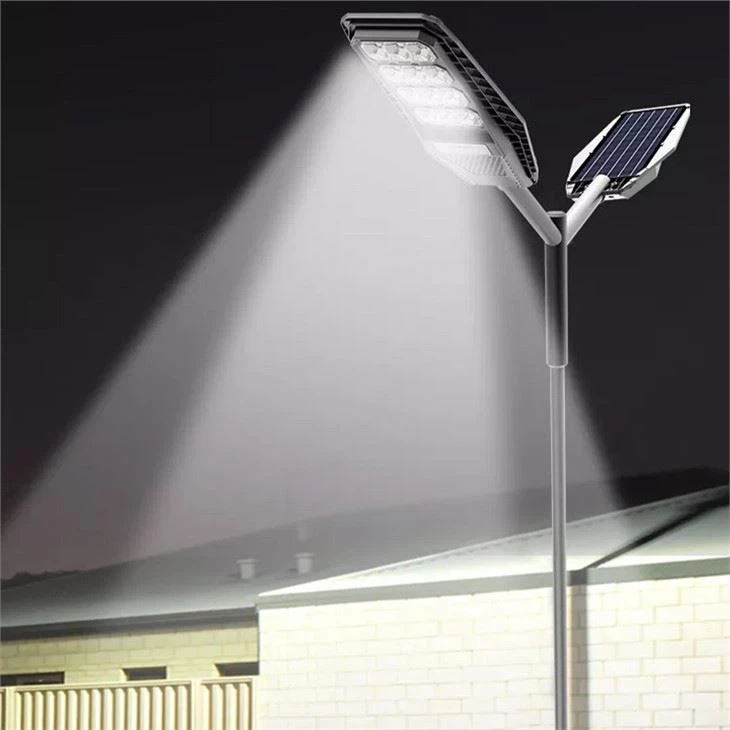

Consider this integrated configuration for outdoor spaces with suitable panel exposure. Compare the lighting coverage and mounting arrangement with the site layout.
Send Namkoo the location, lighting layout and operating schedule. These details help define a suitable integrated lamp configuration and avoid selecting by model label alone. Confirm the technical data, included accessories and written supply terms before ordering.
Contact Namkoo with the required quantity and destination to discuss the quotation and delivery arrangements.
An integrated solar lamp needs a mounting position that suits both sunlight collection and the lighting direction. Provide site photographs, mounting height and the required nightly operating hours. Namkoo can discuss the model and control settings for your enquiry. Confirm the battery, panel and installation details before ordering.
